Hyundai Elantra: Clutch Pedal. Components and Components Location - Clutch System - Clutch System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Clutch Pedal. Components and Components Location

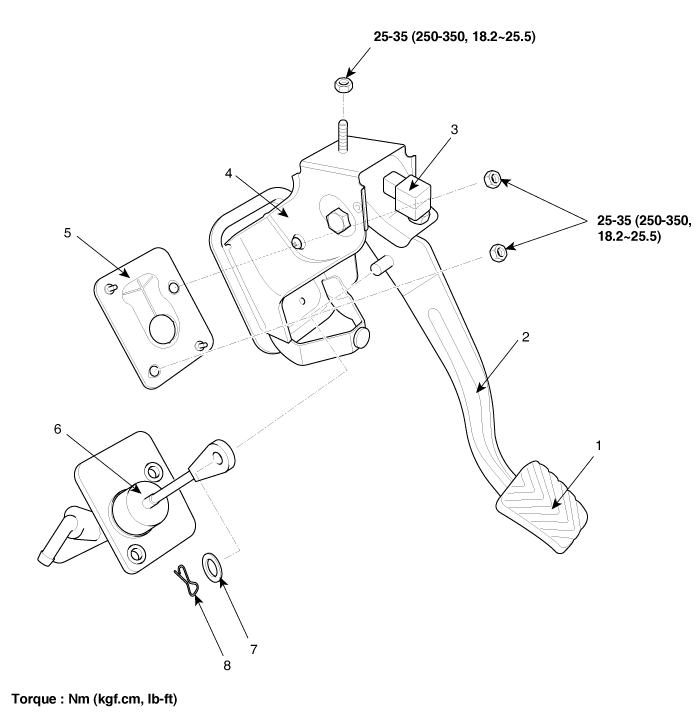

Components

1. Pedal pad
2. Clutch arm assembly
3. Ignition lock switch
4. Clutch member assembly
5. Dust cover
6. Master cylinder assembly
7. Washer
8. Snap pin
