Hyundai Elantra: Clutch Master Cylinder. Components and Components Location - Clutch System - Clutch System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Clutch Master Cylinder. Components and Components Location

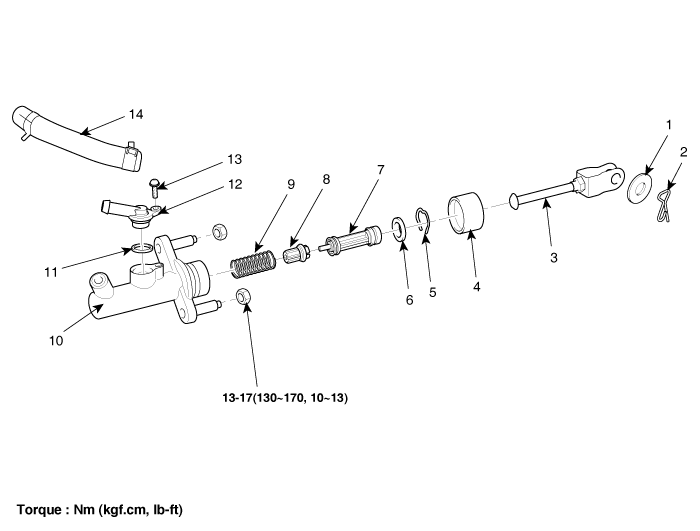

Components

1. Washer
2. Snap pin
3. Rod assembly
4. Boot
5. Key
6. Plate
7. Piston assembly
8. Spring seat
9. Spring
10. Body assembly
11. O-ring
12. Nipple
13. Bolt
14. Flexible hose
