Hyundai Elantra: Checking the engine oil level - Engine oil - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Checking the engine oil level


1. Be sure the vehicle is on level ground.

1. Be sure the vehicle is on level ground.

2. Start the engine and allow it to reach normal operating temperature.

3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

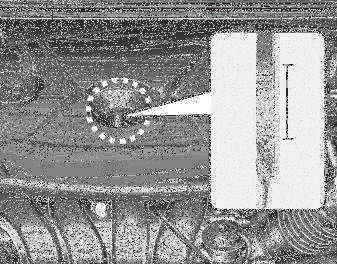

4. Pull the dipstick out, wipe it clean, and re-insert it fully.

- Radiator hoseWARNING - Radiator hose

Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.

5. Pull the dipstick out again and check the level. The level should be between F and L.

CAUTION

  • Do not overfill with engine oil. Engine damage may result.
  • Do not spill engine oil, when adding or changing engine oil. If you drop the engine oil on the engine room, wipe it off immediately.

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

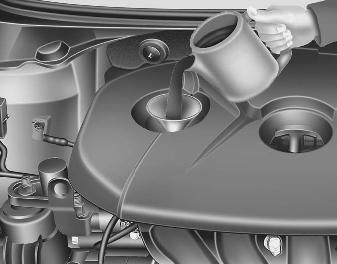

Use a funnel to help prevent oil from being spilled on engine components.

Use only the specified engine oil. (Refer to Recommended lubricants and capacities in section 8.)

    Changing the engine oil and filter
    Have engine oil and filter changed by an authorized HYUNDAI dealer according to the Maintenance Schedule at the beginning of this section. CALIFORNIA PROPOSITION 65 WARNING Engine oil contains c ...
