Hyundai Elantra HD: CDC, AUX(PA760S) - Audio system - Features of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: CDC, AUX(PA760S)

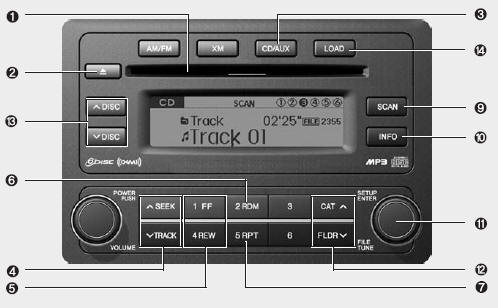

1. CD Loading Slot

1. CD Loading Slot
2. CD Eject Button
3. CD/AUX Selection Button
4. Automatic Track Selection Button
5. Fast Search Button
6. RANDOM Play Button
7. REPEAT Button
9. SCAN Play Button
10. INFO Button
11. SEARCH Knob & ENTER Button
12. FOLDER Moving Button
13. DISC Selection Button
14. CD LOAD Button

1. CD Loading Slot

Please face printed side upward and gently push in. When the ignition switch is on ACC or ON and power is off, power is automatically turned on if the CD is loaded.This CDP supports only 12cm CD. If a video CD or Data CD is loaded, "Reading Error" message will appear and CD will be ejected.

2. CD Eject Button

Push to eject the CD during CD playback. This button is enabled when ignition switch button for less than 0.8 second to eject the CD during CD playback. This button is enabled when ignition switch is off.

• ALL EJECT(CDC Only)

Press this button for more than 0.8 second to eject all discs inside the deck in respective order.

3. CD/AUX Selection Button

If the auxiliary device is connected, it switches to the AUX mode from the other mode to play the sound from the auxiliary player.

If the CD is loaded, turns to CD mode, and if a device is connected to AUX then it toggles. CD ➟ AUX ➟ CD... when the button is pressed each time.(It will not turn to AUX if the auxiliary device is not connected.)

If no CD and auxiliary device is not connected, it displays "No Media" for 3 seconds and returns to the previous mode.

4. Automatic Track Selection Button

  • Push [TRACK than 0.8 second to play from the beginning of current song.] button for less than 0.8 second to play from the beginning of current song.
  • Push [TRACK than 0.8 second and press again within 1 seconds to play the previous song.] button for less than 0.8 second and press again within 1 seconds to play the previous song.
  • Push [SEEK than 0.8 second to play the next song.] button for less than 0.8 second to play the next song.

5. Fast Search Button

  • Push [FF] button for 0.8 second or longer to initiate high speed sound search of current song.
  • Push [REW] button for 0.8 second or longer to initiate reverse direction high speed sound search of current song.

6. RANDOM Play Button

Press this button for less than 0.8 second to activate ‘RDM’ mode and more than 0.8 second to activate ‘ALL RDM’ mode.

  • RDM : Only files/tracks in a folder/disc are played back in a random sequence.
  • ALL RDM(MP3/WMA Only) : All files in a disc are played back in the random sequence.

7. REPEAT Button

Press this button for less than 0.8 second to activate ‘RPT’ mode and more than 0.8 second to activate ‘FLD RPT’ mode.

  • RPT : Only a track(file) is repeatedly played back.
  • FLD RPT(MP3/WMA Only) : Only files in a folder are repeatedly played back.

8. CD Indicator(CDP Only)

If the CD is loaded, If the CD is ejected, this mark disappears. mark is displayed. If the CD is ejected, this mark disappears.

9. SCAN Play Button

Plays first 10 seconds of each song in the CD. To cancel the mode, press the button once again.

10. INFO Button

Displays the information of the current CD TRACK(FILE) as below when the button is pressed each time. • CDDA : DISC TITLE ➟ DISC ARTIST ➟ TRACK TITLE ➟ TRACK ARTIST ➟ TOTAL TRACK... • MP3/WMA : FILE NAME ➟ TITLE ➟ ARTIST ➟ ALBUME ➟ FOLDER NAME ➟ TOTAL FILE... (not displayed if the information is not available on the DISC.)

11. SEARCH Knob & ENTER Button

Turn this knob clockwise to display the songs next to the currently played song. Turn the knob counterclockwise to display the songs before the currently played song. Press the button to skip and play the selected song.

12. FOLDER Moving Button

  • Moves [FLDR of the current folder and displays the first song in the folder. Press TUNE/ENTER] button child folder of the current folder and displays the first song in the folder. Press TUNE/ENTER knob to move to the folder displayed. It will play the first song in the folder.
  • Moves [CAT and displays the first song in the folder. Press TUNE/ENTER knob to move to] button parent folder and displays the first song in the folder. Press TUNE/ENTER knob to move to the folder displayed.

13. DISC Selection Button

  • [DISC disc to the previous disc.] Change button Changes disc to the previous disc.
  • [DISC disc to the next disc.] Change button Changes disc to the next disc.

14. CD LOAD Button

Push [LOAD] button to load CDs to available CDC deck (from 1~6).

Push [LOAD] button for more than 2 seconds to load into all available decks.

The last CD will play. 10 seconds idle status will disable loading process.
