Fourth generation (HD; 2007–2010) / Hyundai Elantra HD 2006–2010 Service Manual / Engine Control/Fuel System / Engine Control System / Camshaft Position Sensor (CMPS). Schematic Diagrams

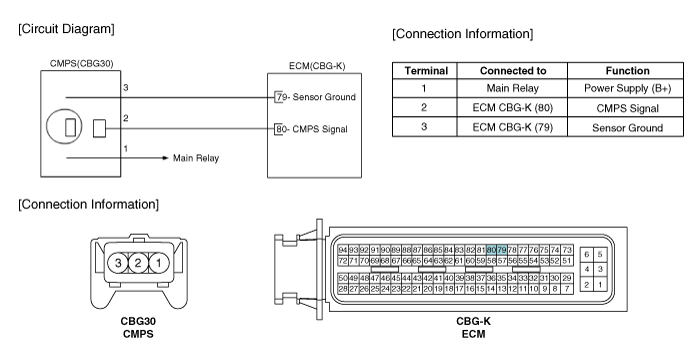

Circuit Diagram

Camshaft Position Sensor (CMPS). Troubleshooting

Waveform ...

Camshaft Position Sensor (CMPS). Repair procedures

Component Inspection 1. Check signal waveform of CMPS and CKPS using a scantool. Specification: Refer to "WAVE FORM" ...
