Hyundai Elantra: Camshaft Position Sensor (CMPS). Schematic
Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Camshaft Position Sensor (CMPS). Schematic Diagrams


Circuit Diagram

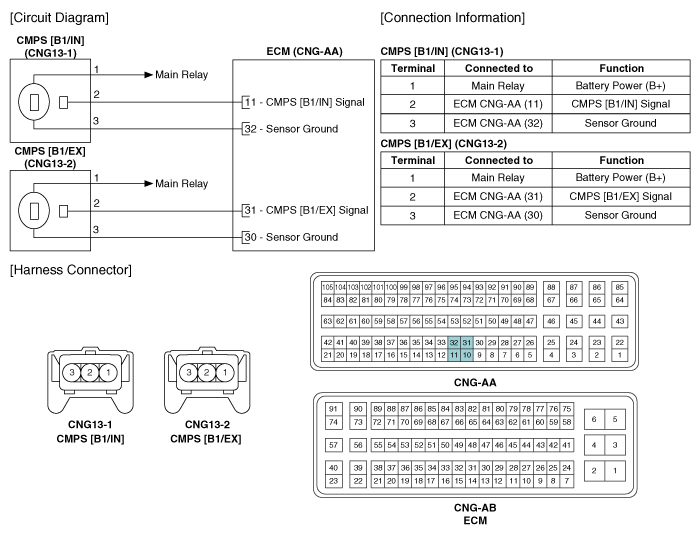

(M/T)

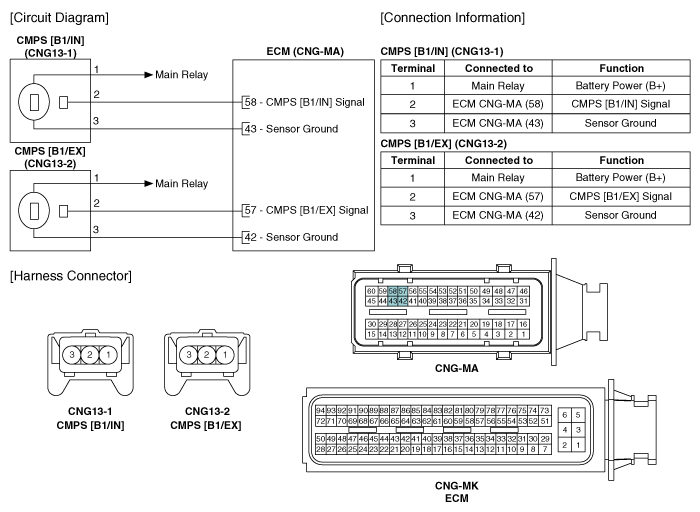

(A/T)
