Hyundai Elantra: Brake Pedal. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Brake Pedal. Components and Components Location

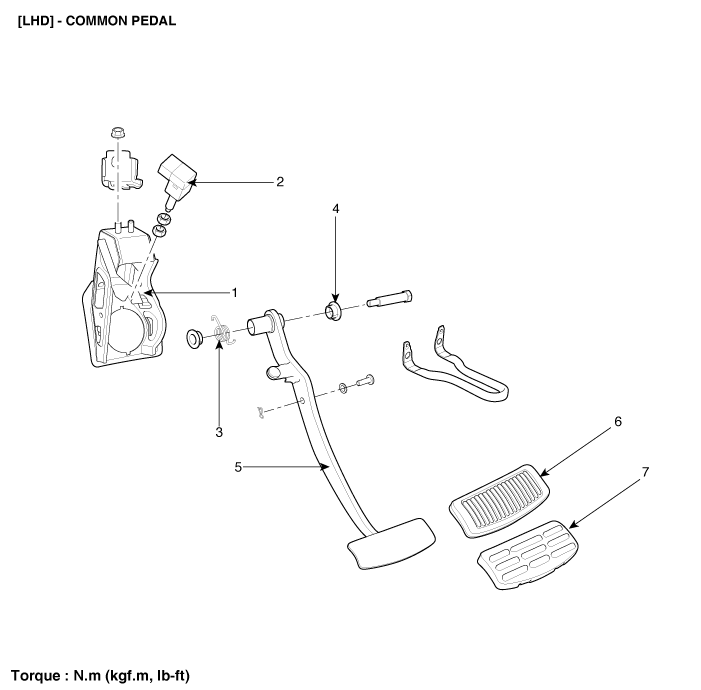

Components

1. Member assembly bracket
2. Stop lamp switch
3. Return spring
4. Bushing
5. Brake pedal
6. Pedal pad
7. Pedal pad (only canada option item)


    Brake Line. Repair procedures
    Removal 1. Disconnect the brake hose (C) from the brake line (A) using a flare-nut wrench (B). 2. Remove the brake hose clip (B), ...

    Brake Pedal. Repair procedures
    Removal 1. Remove the lower crash pad.(Refer to BD "crash pad") 2. Pull down steering column shaft after removing 4 bolts. ...
