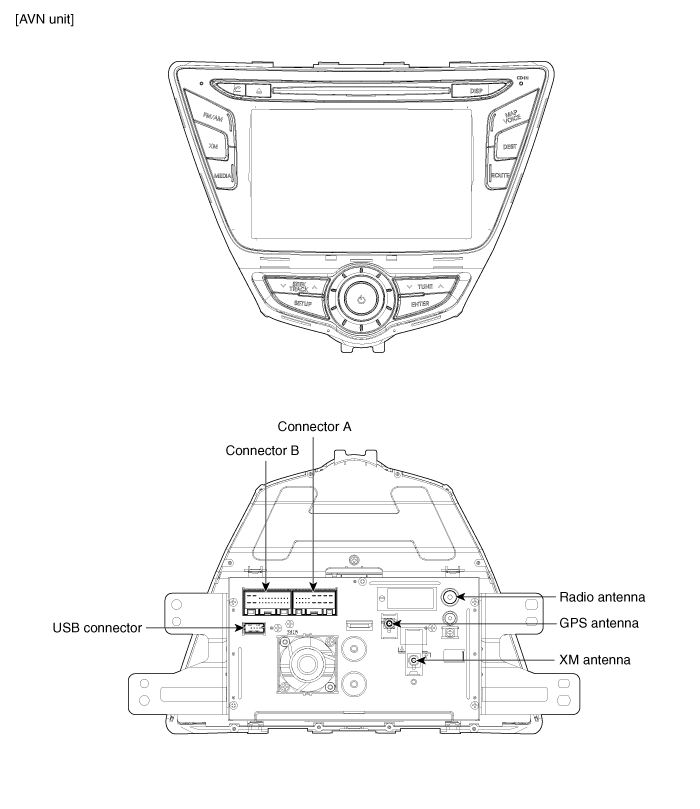

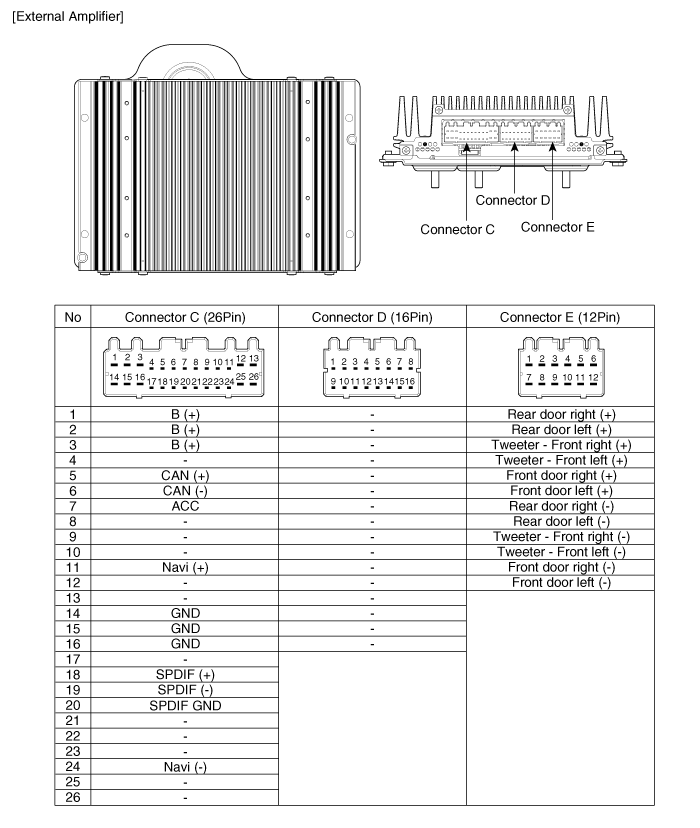

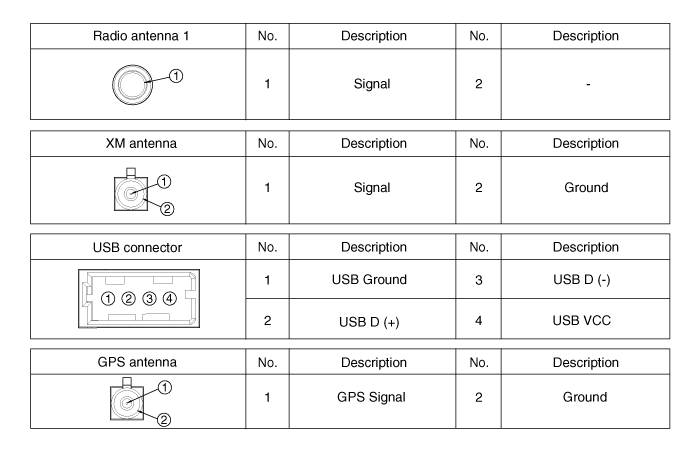

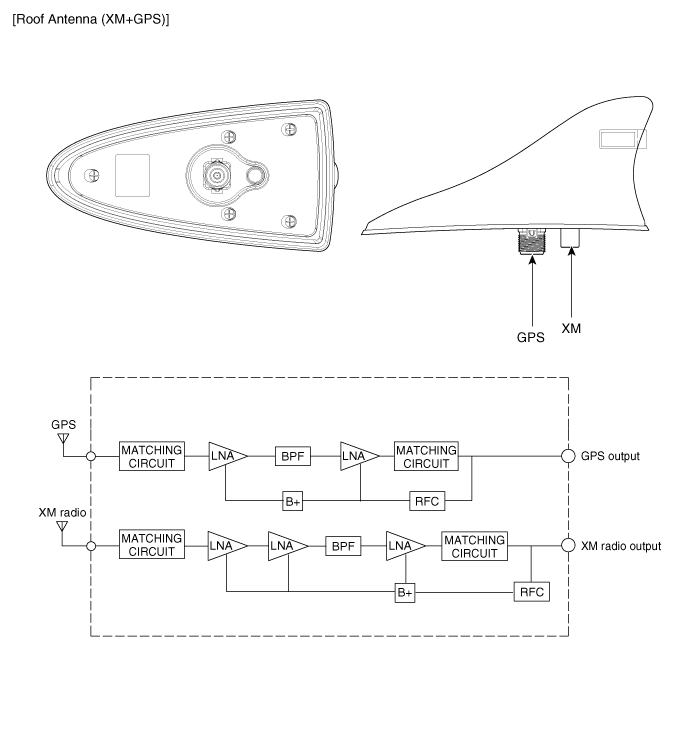

Components

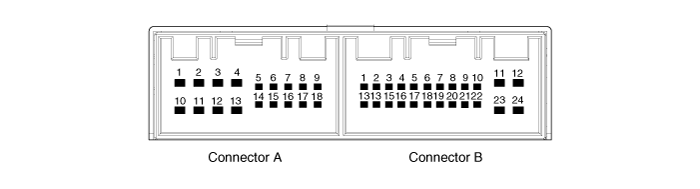

AVN (A/V & Navigation) Head Unit Connector

Pin No
Description
Comments
A1
-

A2
CAMERA VIDEO
Rear View Camera Video Signal
A3
CAMERA VGND
Rear View Camera Video Ground
A4
CAMERA PGND
Rear View Camera POWER Ground
A5
SPDIF_GND
SPDIF DIGITAL SIGNAL GND
A6
SPDIF+
SPDIF DIGITAL SIGNAL POSITIVE
A7
ALT_L
ALT Signal
A8
ILL+
Rheostat from vehicle +
A9
R_POSITION
R Positon signal from Vehicle
A10
-

A11
CAMERA_BATT
Rear View Camera Power
A12
NAVI_VOICE-
Navigation Voice channel -
A13
NAVI_VOICE+
Navigation Voice channel +
A14
B/VIEW INH
Rear Camera detection Pin (OPEN : B/V, GND : No option)
A15
SPDIF-
SPDIF DIGITAL SIGNAL NEGAITIVE
A16
DOOR
Door Unlock Signal
A17
ILL-
Rheostat from vehicle -
A18
ANT_ON
Remote supply for motorised antenna
B1
CAN High
MM CAN-H I/F
B2
-

B3
-

B4
Steering Wheel Remote Control
Steering Wheel Remote Control Input
B5
-

B6
-

B7
AUX Video Signal
AUX Video Signal
B8
AUX Right Sound Signal
AUX ST SOUND R-CH INPUT
B9
AUX Reference Ground
AUX ST SOUND GND
B10
MIC+
BLUETOOTH, H/F VOICE INPUT PIN
B11
Accessory
Engine switch on(ACC)
B12
Battery
Fused battery power supply
B13
CAN Low
MM CAN-L I/F
B14
Auto Light
Auto Light Sensor is detected
B15
Parking Positon
P Positon signal from Vehicle
B16
SPEED
Speed signal from vehicle
B17
Steering Wheel Remote Control GND
Steering Wheel Remote Control GND
B18
-

B19
AUX Video Signal Ground
AUX Video Signal GND
B20
AUX Signal Input Detect
AUX CONNECTION DETECT
B21
AUX Left Sound Signal
AUX ST SOUND L-CH INPUT
B22
MIC-
BLUETOOTH H/F VOICE INPUT GND
B23
POWER GND
Ground of Power Supply Line
B24
POWER GND
Ground of Power Supply Line
