Hyundai Elantra: Automatic Transaxle. Components and Components Location (A4CF2) - Automatic Transaxle System - Automatic Transaxle System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Automatic Transaxle. Components and Components Location (A4CF2)

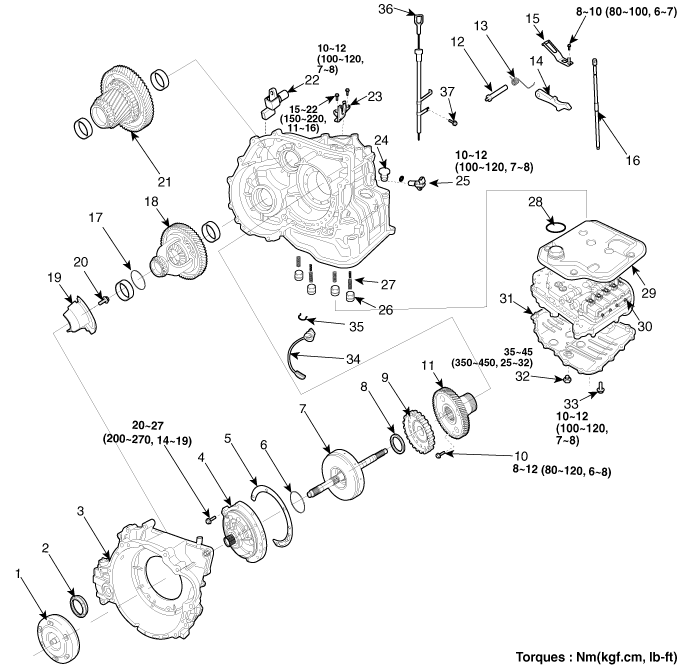

Components(1)

1. Torque converter
2. Differential oil seal
3. Converter housing
4. Oil pump
5. Oil pump gasket
6. Thrust washer
7. Underdrive(U/D) clutch
8. Thrust bearing
9. Underdrive(U/D) clutch hub
10. Transfer drive gear mounting bolt
11. Transfer drive gear
12. Parking sprag shaft
13. Sprag spring
14. Parking sprag
15. Detent spring
16. Manual control shaft
17. Spacer
18. Differential
19. Oil separate
20. Oil separate mounting bolt
21. Transfer driven gear
22. Output shaft speed sensor
23. Shift cable bracket
24. Plug
25. Input shaft speed sensor
26. Accumulator piston
27. Coil spring
28. O-ring
29. Oil filter
30. Valve body
31. Oil pan
32. Drain plug
33. Valve body cover bolt
34. Valve body connector
35. Valve body connector mounting clip
36. Oil level gauge
37. Oil level gauge bracket bolt

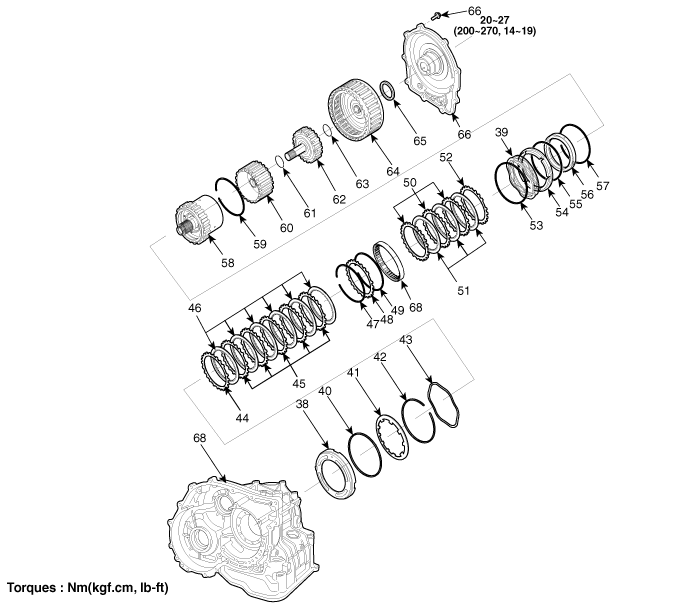

Components(2)

38. Low & reverse brake piston
39. Return spring
40. Low & reverse brake spring retainer
41. Low & reverse brake return spring
42. Snap ring
43. Wave spring
44. Low & reverse pressure plate
45. Low & reverse brake plate
46. Low & reverse brake disc
47. Snap ring
48. Reaction plate
49. Snap ring
50. 2ND brake plate
51. 2ND brake disc
52. 2ND brake pressure plate
53. Snap ring
54. 2ND brake piston
55. D-ring
56. 2ND brake retainer
57. D-ring
58. Low & reverse planetary gear set
59. Snap ring
60. Reverse sun gear
61. Thrust bearing
62. Overdrive(O/D) hub
63. Thrust bearing
64. Reverse & Overdrive(O/D) clutch
65. Thrust bearing
66. Rear cover
67. Rear cover bolt
68. One way clutch inner race
69. Transmission case
