Hyundai Elantra: Adjustment - Trunk Lid. Repair procedures - Exterior - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra: Adjustment

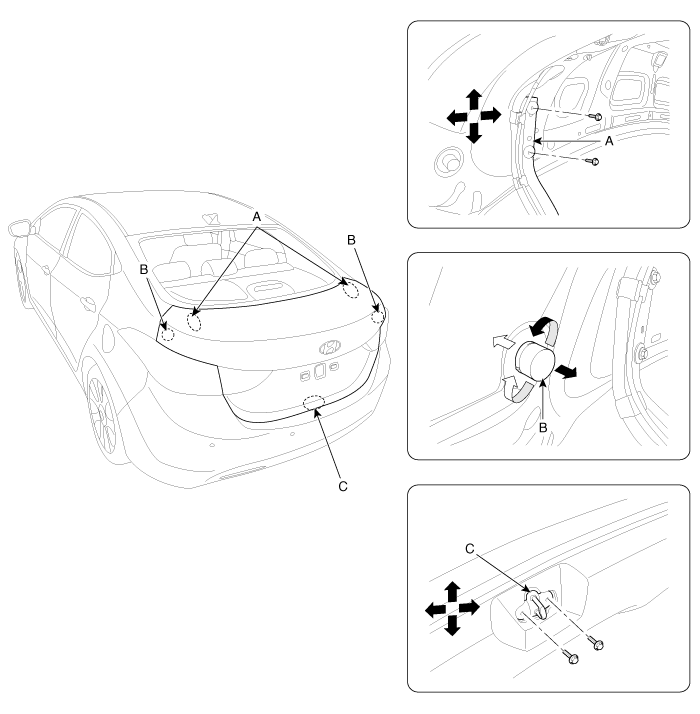

1.
After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
2.
Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
3.
After loosening the striker (C) mounting bolts, adjust the striker by moving it up or down, or right or left.
