Hyundai Elantra: Accelerator Position Sensor (APS). Schematic
Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Accelerator Position Sensor (APS). Schematic Diagrams


Circuit Diagram

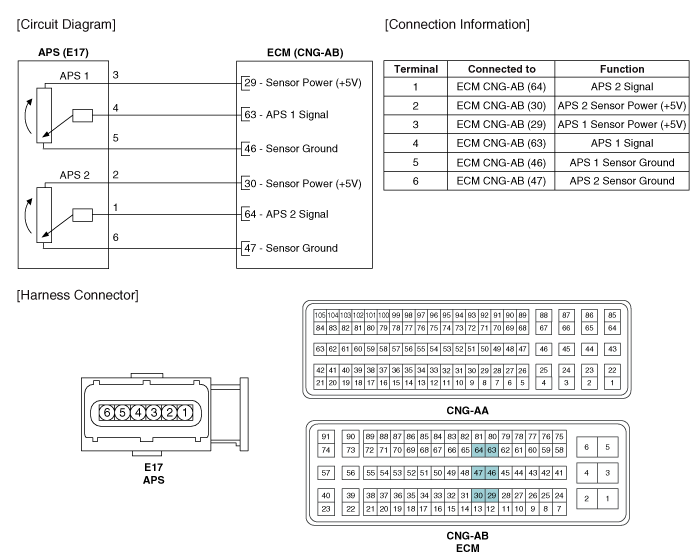

(M/T)

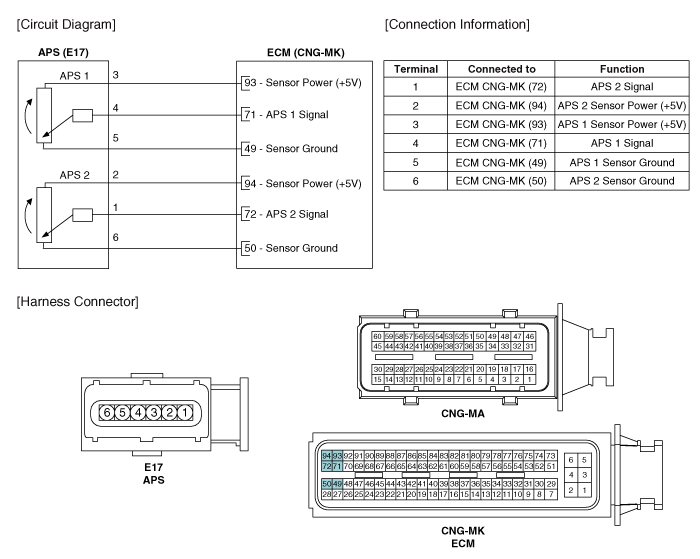

(A/T)
