Hyundai Elantra HD: Securing a child restraint seat with “Tether Anchor” system - Using a child restraint system - Child restraint system - Safety system of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Securing a child restraint seat with “Tether Anchor” system

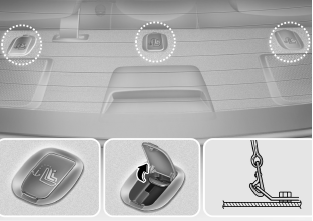

Child restraint hook holders are located on the shelf behind the rear seats.

Child restraint hook holders are located on the shelf behind the rear seats.

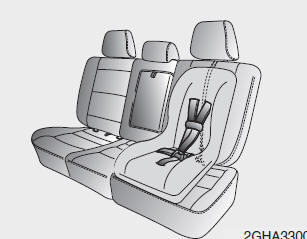

1. Route the child restraint seat strap over the seatback.

1. Route the child restraint seat strap over the seatback.

For vehicles with adjustable headrest, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback.

2. Connect the tether strap hook to the appropriate child restraint hook holder and tighten to secure the seat.

WARNING WARNING

When using the vehicle's "Tether Anchor" system to install a child restraint system in the rear seat, all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of unretracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the unretracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint.

WARNING - Tether strap WARNING - Tether strap

  • A child can be seriously injured or killed in a collision if the child restraint is not properly anchored. Always follow the child seat manufacturer’s instructions for installation and use.
  • Never mount more than one child restraint to a single tether or to a single lower anchorage point.The increased load caused by multiple seats may cause the tethers or anchorage points to break, causing serious injury or death.

WARNING - Child restraint check WARNING - Child restraint check

Check that the child restraint system is secure by pushing and pulling it in different directions. Incorrectly fitted child restraints may swing, twist, tip or separate causing death or serious injury.

WARNING WARNING

- Child restraint anchorage

  • Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses or for attaching other items or equipment to the vehicle.
  • The tether strap may not work properly if attached somewhere other than the correct tether anchor.
