Hyundai Elantra HD: Relay Box (Engine Compartment). Repair procedures - Fuses And Relays - Body Electrical System - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra HD: Relay Box (Engine Compartment). Repair procedures

Inspection

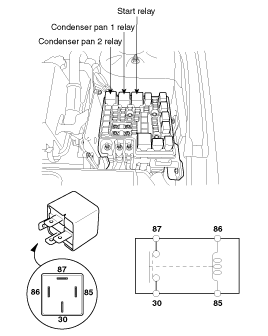

Power Relay (Type A)
Check for continuity between the terminals.
1.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2.
There should be no continuity between the No.30 and No.87 terminals when power is disconnected.

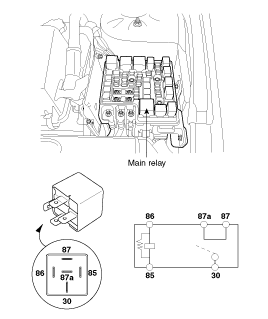

Power Relay (Type B)
Check for continuity between the terminals.
1.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2.
There should be continuity between the No.30 and No.87 terminals when power is disconnected.

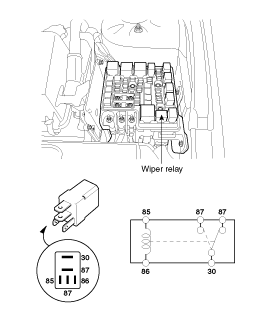

Power Relay (Type C)
Check for continuity between the terminals.
1.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2.
There should be no continuity between the No.30 and No.87 terminals when power is disconnected.

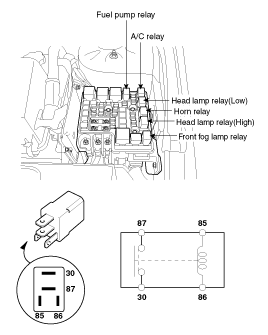

Power Relay (Type D)
Check for continuity between the terminals.
1.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2.
There should be continuity between the No.30 and No.87 terminals when power is disconnected.

Fuse
1.
Be sure there is no play in the fuse holders, and that the fuses are held securely.
2.
Are the fuse capacities for each circuit correct?
3.
Are there any blown fuses?
If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.
