Hyundai Elantra: Relay Box (Engine Compartment). Components and Components Location
Fourth generation (HD; 2006–2010)
/
Hyundai Elantra HD 2006–2010 Service Manual
/
Body Electrical System
/
Fuses And Relays
/ Relay Box (Engine Compartment). Components and Components Location
Component Location
Components and Components Location

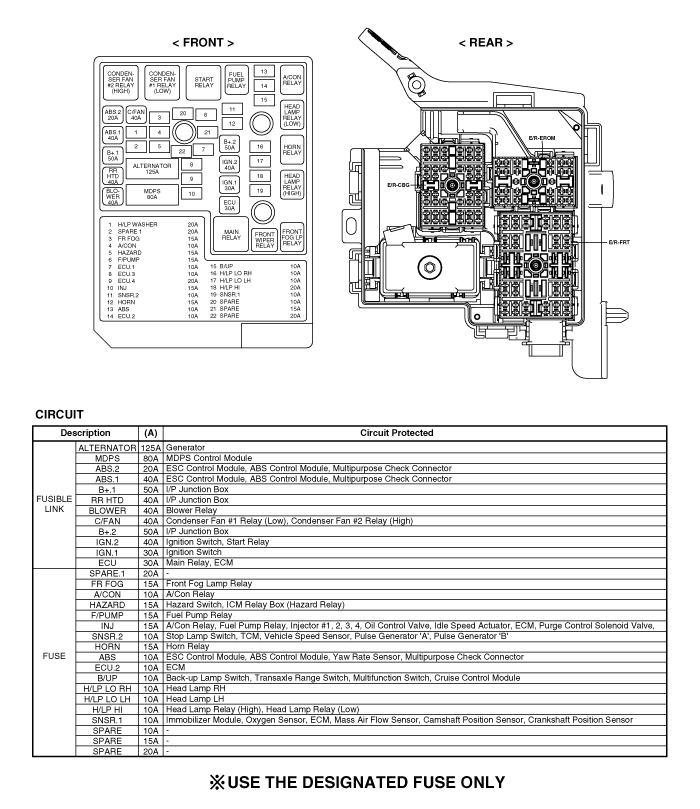

Component Location 1. Condenser pan 2 relay 2. Condenser pan 1 relay 3. Start relay 4. A/C relay 5. Fuel pump relay 6. Head lamp relay (Low-left side) 7. ...
Relay Box (Engine Compartment). Repair procedures
Inspection Power Relay (Type A) Check for continuity between the terminals. 1. There should be continuity between the No.30 and No.87 terminals when power and grou ...
