Hyundai Elantra MD/UD: Crash Pad. Components and Components Location - Interior - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Crash Pad. Components and Components Location

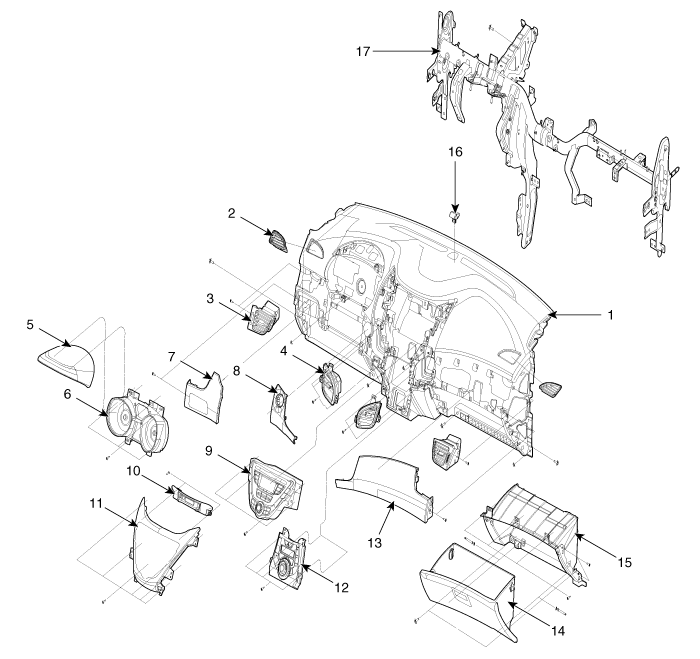

Components

1. Main crash pad assembly
2. Side def nozzle assembly
3. Side air vent duct
4. Center air vent duct
5. Cluster fascia upper panel
6. Cluster assembly
 7. Center crash pad driver's panel [LH]
8. Center crash pad driver's panel [RH]
9. Audio assembly
10. Clock assembly
11. Center facia panel
12. Heater control unit
13. Center crash pad passenger's panel
14. Glove box
15. Glove box housing
16. Photo sensor
17. Cowl cross bar assembly
