Hyundai Elantra MD/UD: Trouble Diagnostics When Using GDS - Body Control Module (BCM). Repair procedures - BCM (Body Control Module) - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Trouble Diagnostics When Using GDS

1.
The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
2.
To diagnose the BCM function, select the menu of model and body control module.
3.

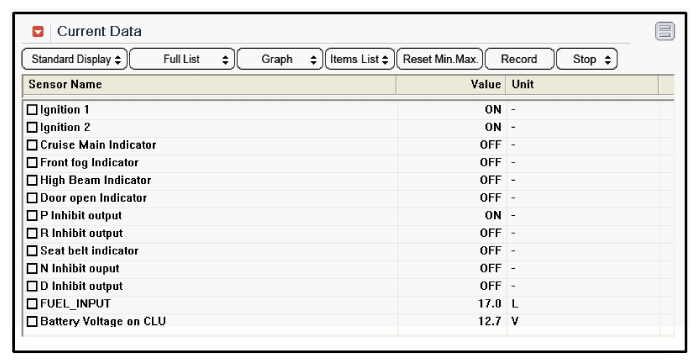

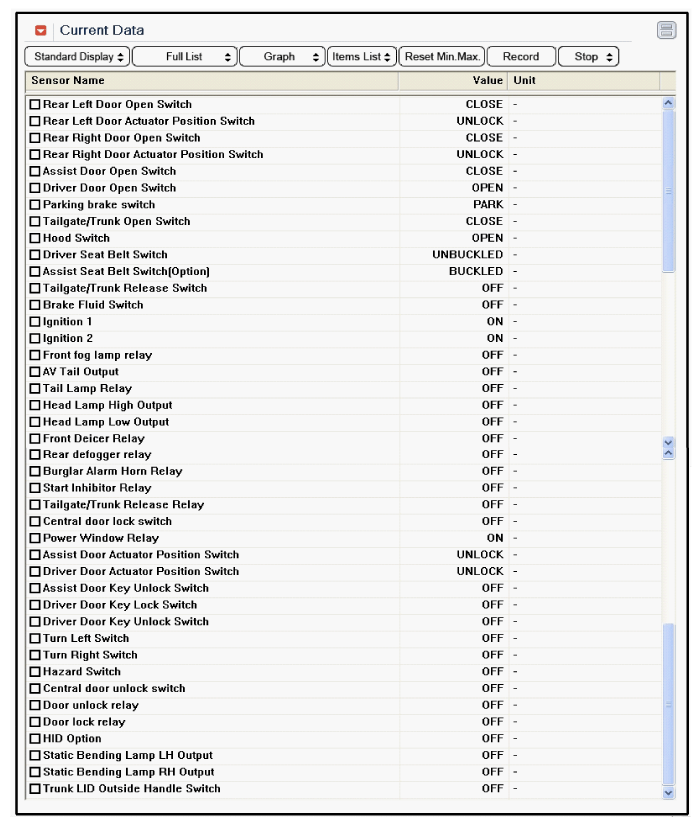

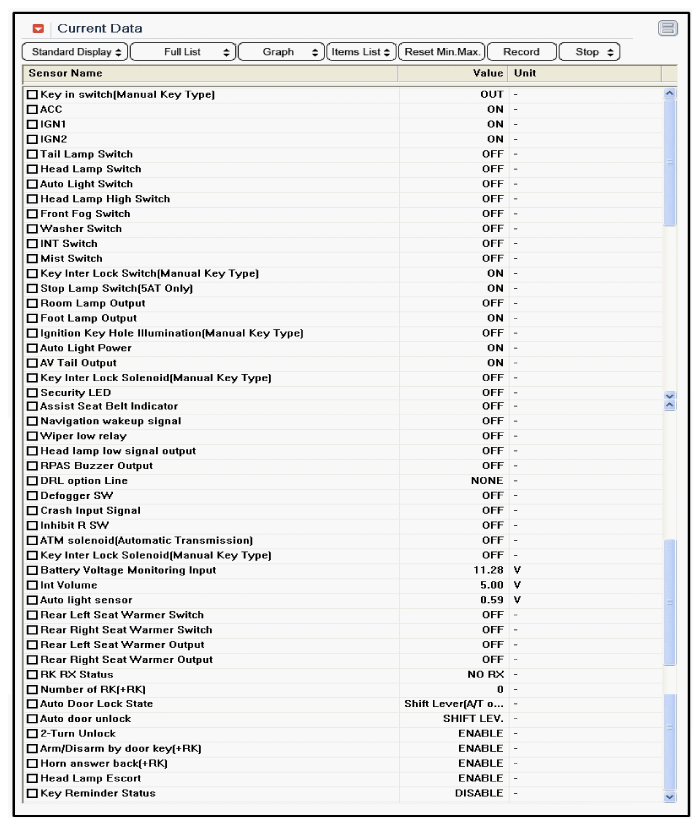

To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.
A.
BCM Service data
B.
CLU(Cluster) Service data
C.
SJB(Smart junction box) Service data
4.

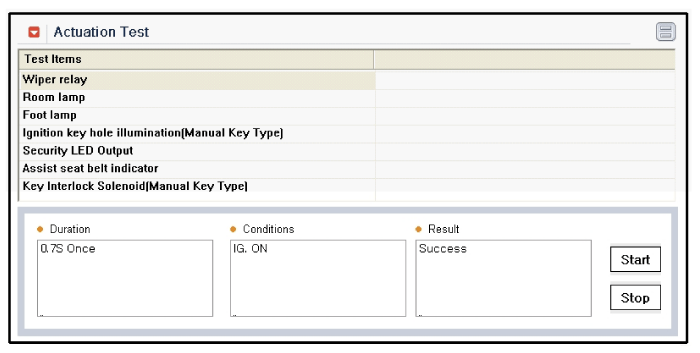

To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the console.(Refer to the BD group - "Console") 3. ...
