Hyundai Elantra MD/UD: Seat Heater. Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Body Electrical System / Seat Electrical / Seat Heater. Schematic Diagrams

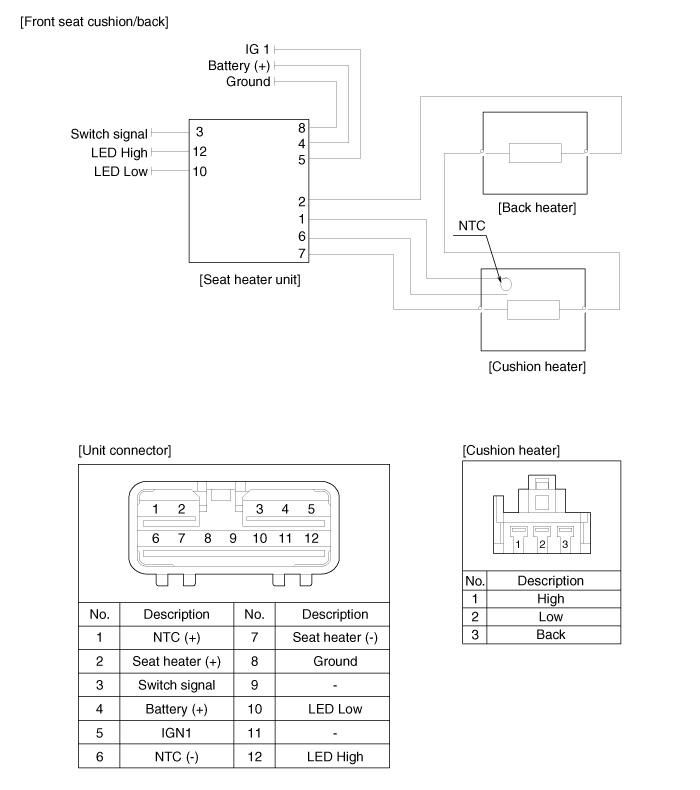

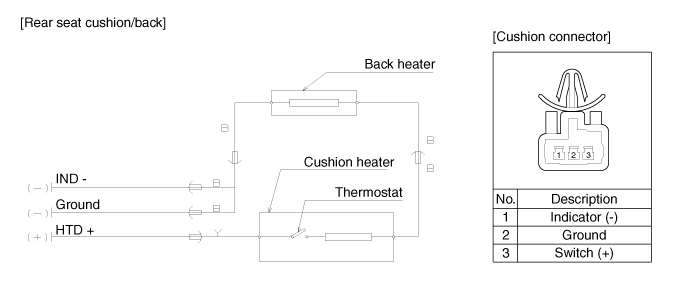

Circuit Diagram

Seat Heater. Components and Components Location

Component Location ...

Seat Heater. Repair procedures

Inspection First Seat Heater 1. Check for continuity and measure the resistance between terminals. [Cushion] No. ...
