Hyundai Elantra: Repair procedures - Ignition Switch Assembly - Body Electrical System - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra: Repair procedures

Inspection

1.
Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
2.

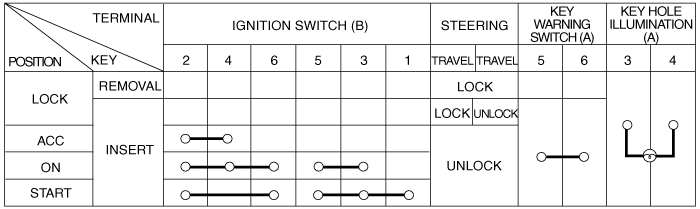

Check for continuity between the terminals.
3.
If continuity is not specified, replace the switch.


Removal

1.
Disconnect the negative (-) battery terminal.
2.
Remove the shroud (Steering cloumn cover).
(Refer to the Body group - shroud).
3.
Remove the ignition switch (A) after loosening the screw (B) with IG ON and disconnecting the 6P connector (C).

4.
Remove the steering column cover (Refer to the ST group).
5.
Remove the door warning switch and key illumination lamp (A) after loosening the screw and disconnecting the 6P connector.

6.
If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.


Installation

1.
Install the key lock cylinder.
2.
Install the door warning switch and key illumination lamp.
3.
Install the steering column cover.
4.
Install the ignition switch.
5.
Install the crash pad lower panel.
