Hyundai Elantra MD/UD: Removal - TPMS Sensor. Repair procedures - Tire Pressure Monitoring System - Suspension System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Removal

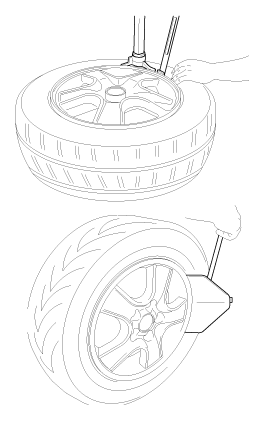

Tire Removal
1.
Deflate tire & remove balance weights.
Sensor can be unscrewed before unseating the tire bead.
•
The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
•
Avoid tire/tool contact with the valve on dismount.
•
Dismount should end near the valve.

Sensor Removal
Handle the sensor with care.
1.
Remove the valve nut.

The valve nut should not be re-used.
2.
Discard the valve assembly.

Installation
Sensor Fit • Handle the sensor with care. • ...
