Hyundai Elantra: Rear Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra: Rear Seat. Components and Components Location

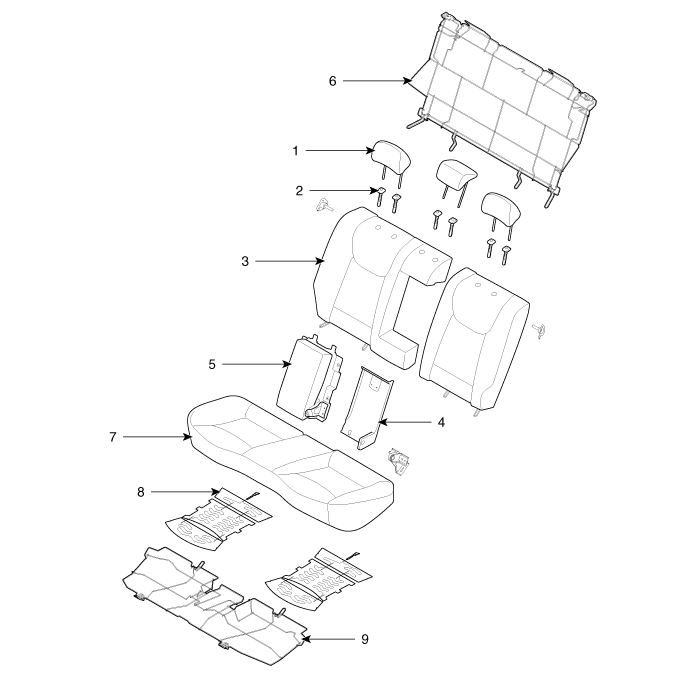

Components

1. Headrest
2. Headrest guide
3. Rear seat back cover
4. Armrest board
5. Armrest
 6. Rear seat back frame assembly
7. Rear seat cushion cover
8. Rear seat cushion warmer
9. Rear seat cushion frame assembly
