Hyundai Elantra MD/UD: Rear Drum Brake. Components and Components Location - Brake System - Brake System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Rear Drum Brake. Components and Components Location

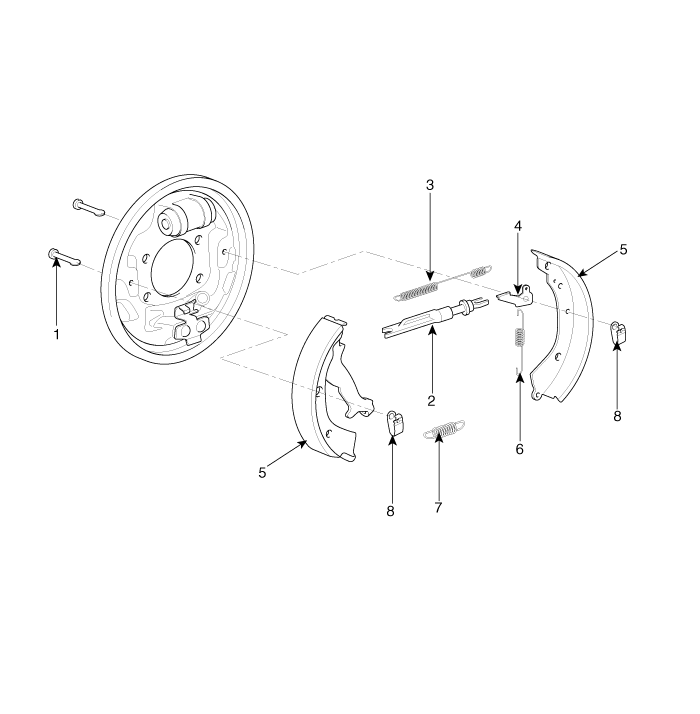

Components

1. Shoe hold down pin
2. Shoe adjuster
3. Upper return spring
4. Adjusting lever
 5. Shoe
6. Adjusting spring
7. Lower return spring
8. Shoe hold spring


Parking Brake Adjustment
• Re-setting of the parking brake is necessary after overhauling the caliper body, or if the ...
