Hyundai Elantra HD: Preparation of tools and mesuring equipment
Be sure that all necessary tools and measuring equipment
are available starting work.
SPECIAL TOOLS
Use special tools when they are required.
REMOVAL OF PARTS
First find the cause of the problem and then determine whether
removal or disassembly before starting the job.
DISASSEMBLY
If the disassembly procedure is complex, requiring many parts
to be disassembled, all parts should be disassembled in a way that will not
affect their performance or external appearance.
| 1. |
Inspection of parts
Each part, when removed, should be carefully on suspected
for malfunction, deformation, damage, and other problems.
|
| 2. |
Arrangement of parts
All disassembled parts should be carefully arranged
for effective reassembly.
Be sure to separate and correctly identify the parts
to be replaced from those that will be used again.
|
| 3. |
Cleaning parts for reuse
All parts to be used again should be carefully and
thoroughly cleaned by an appropriate method.
|
PARTS

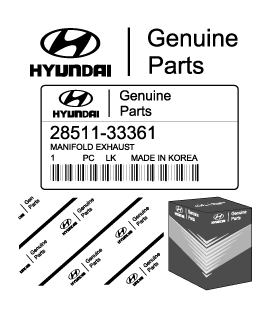

When replacing parts, use HYUNDAI genuine parts.
REPLACEMENT
Standard values, such as torques and certain adjustments,
must be strictly observed in the reassembly of all parts.
If removed, the following parts should always be replaced
with new ones.
| 1. |
Oil seals
|
| 2. |
Gaskets
|
| 3. |
O-rings
|
| 4. |
Lock washers
|
| 5. |
Cotter pins (split pins)
|
| 6. |
Plastic nuts
Depending on their location.
|
| 7. |
Sealant should be applied to gaskets.
|
| 8. |
Oil should be applied to the moving components of
parts.
|
| 9. |
Specified oil or grease should be applied to the
prescribed locations (oil seals, etc) before assembly.
|
ADJUSTMENT
Use gauges and testers to adjust correctly the parts to standard
values correctly.
