Hyundai Elantra MD/UD: Power Door Lock Relay. Repair procedures - Power Door Locks - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Power Door Lock Relay. Repair procedures

Inspection

Diagnosis With GDS
1.
It will be able to diagnose defects of power door lock with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

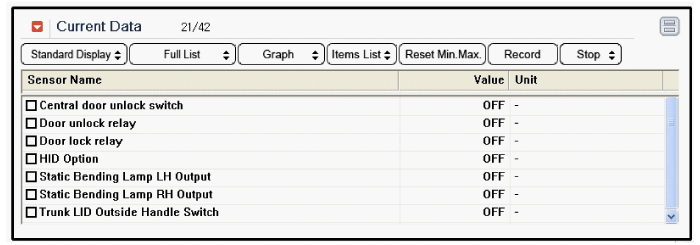

Select "Current data", if you will check current data of power door lock system. It provides input/output status of SJB.

5.

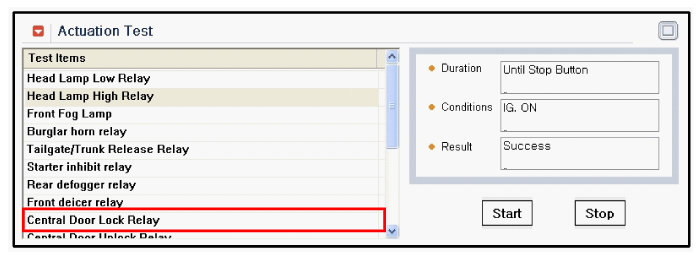

If you will check the power door lock operation forcefully, select "Actuation test".


Power Door Lock Actuators. Repair procedures
Inspection Front Door Lock Actuator Inspection 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. ...
