Hyundai Elantra MD/UD: Multimedia jack. Schematic Diagrams - Audio - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Multimedia jack. Schematic Diagrams

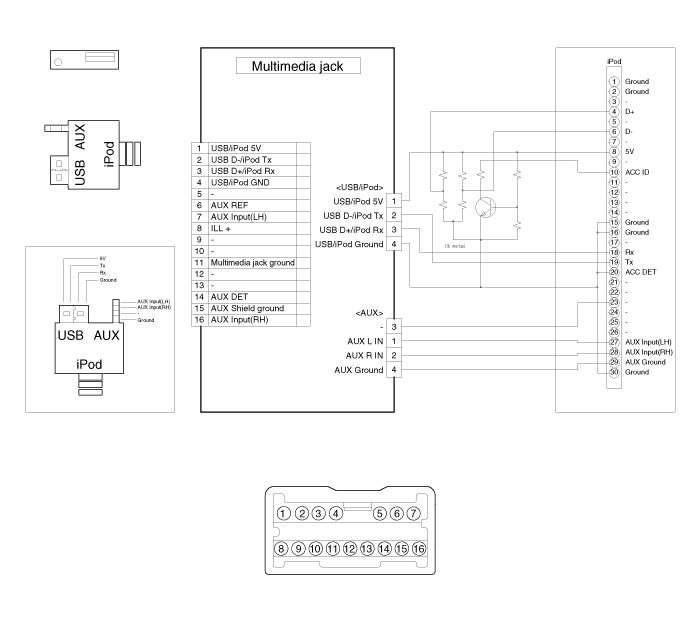

Circuit Diagram

No
 Terminal Description
 Condition
 Specified Condition
1
 USB /iPod power
 USB/iPod device is inserted
 4.9V ~ 5.1V
2
 USB D-
 USB device is inserted
 3.2V ~ 3.45
3
 USB D+
 USB device is inserted
 3.2V ~ 3.45
4
 iPod detection line
 iPod device is inserted
 GND
5
 -
 　
 　
6
 AUX Reference Ground
 Always
 Below 1 ohm
7
 AUX Left Sound Signal
 External Auxiliary device is Audio playing(At time of Aux jack use)
 A waveform synchronized with sound is output
8
 Rheostat from vehicle +
 　
 　
9
 -
 　
 　
10
 -
 　
 　
11
 Multimedia jack ground
 　
 GND
12
 -
 　
 　
13
 -
 　
 　
14
 AUX Signal Input Detect
 Auxiliary device is inserted
 0V(Low) → 5V(High)
15
 AUX Shield ground
 　
 GND
16
 AUX Right Sound Signal
 External Auxiliary device is Audio playing(At time of Aux jack use)
 A waveform synchronized with sound is output
