Hyundai Elantra MD/UD: Instrument cluster - Features of your vehicle - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Instrument cluster

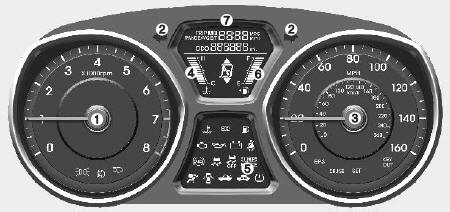

Type A

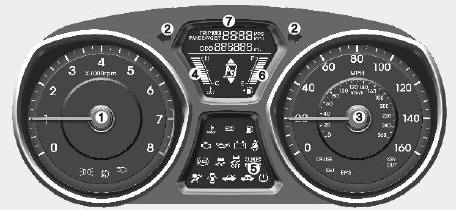

Type B

Type B

1. Tachometer

1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5.Warning and indicator lights
6. Fuel gauge
7. Odometer/Trip computer

* The actual cluster in the vehicle may differ from the illustration.

For more details refer to the "Gauges" section in the next pages.
