Hyundai Elantra MD/UD: Inspection (With GDS)
| 1. |
Check BCM input/output specification of multifunction switch using
the GDS. If the specification is abnormal, replace the lamp or wiper
switch.
|
| 2. |
If diagnosis is required on the multifunction switch, select model
and "BCM".
|
| 3. |

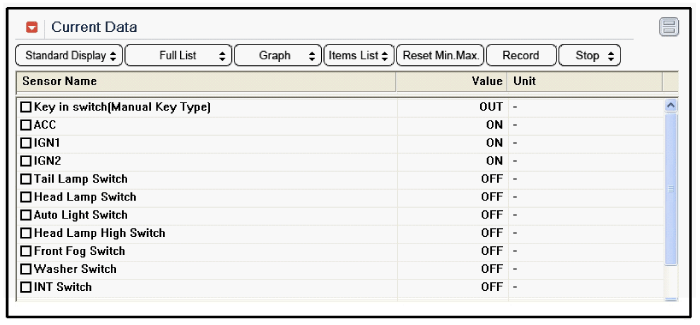

To consult the present input/output value of BCM, "Current DATA".
It provides information of BCM input/output conditions of power supply,
turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper,
auto-light and transmitters etc.
|
| 4. |
To perform compulsory operation on BCM input factors, select "ACTUATION
TEST".
|
