Hyundai Elantra MD/UD: Inspection - Overhead Console Lamp. Repair procedures - Lighting System - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Inspection

1.

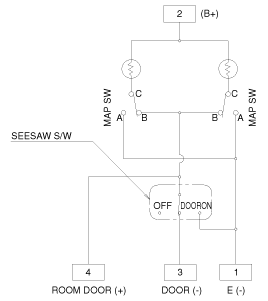

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

No.
 Description
1
 Ground(-)
2
 Battery(+)
3
 Door(-)
4
 Room(+)


Removal
1. Disconnect the negative (-) battery terminal. 2. Loosen 2 screws holding the overhead console (A). 3. ...
