Hyundai Elantra MD/UD: Inspection - Repair procedures - Horn - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Inspection

Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace it.
Horn Relay Inspection
1.

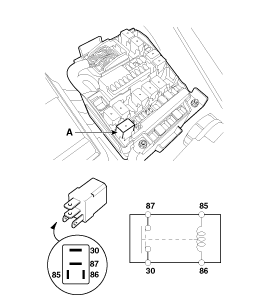

Remove the horn relay (A) from the engine room relay box.
2.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
3.
There should be no continuity between the No.30 and No.87 terminals when power is disconnected.


Removal
1. Remove the front bumper. (Refer to the BD group - "Front bumper") 2. Remove the mounting bolt and disconnect the horn conne ...
