1. |

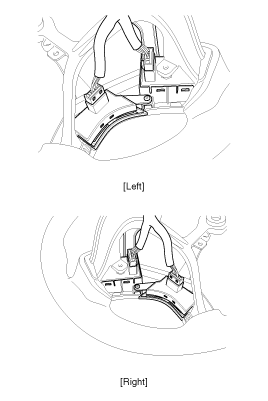

Check the audio remote control switch for resistance between connector
3 and 4 in each switch position.
[Audio (Left)]
Switch
|
Connector terminal
|
Resistance
(±5%)
|
MUTE
|
3-4
|
3.11 kΩ
|
Volume up
|
3-4
|
4.61 kΩ
|
Volume down
|
3-4
|
6.81 kΩ
|
[Audio (Right)]
Switch
|
Connector terminal
|
Resistance
(±5%)
|
SEEK up
|
3-4
|
430 Ω
|
SEEK down
|
3-4
|
1.1 kΩ
|
Mode
|
3-4
|
2.11 kΩ
|
[Bluetooth (Left)]
Switch
|
Connector terminal
|
Resistance
(±5%)
|
Call
|
3-4
|
10.71 kΩ
|
Hang up
|
3-4
|
18.91 kΩ
|
Voice
|
3-4
|
40.91 kΩ
|
|
1.
Disconnect the negative (-) battery terminal.
2.
Rotate the steering wheel about 90° clockwise or counterclockwise
to remove the screws ...
