Hyundai Elantra MD/UD: Ignition Coil. Schematic Diagrams - Ignition System - Engine Electrical System - Hyundai Elantra MD 2010-2015 Service manual

Hyundai Elantra MD/UD: Ignition Coil. Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Engine Electrical System / Ignition System / Ignition Coil. Schematic Diagrams

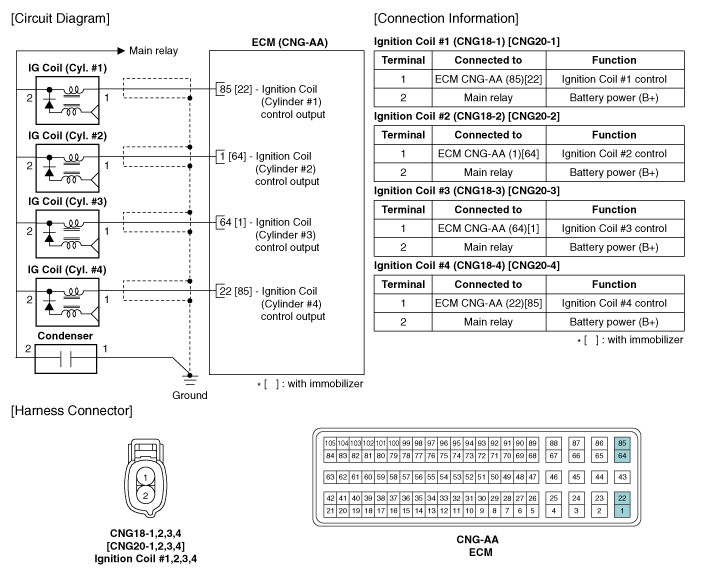

Circuit Diagram

Ignition Coil. Specifications

Specification Item Specification Primary Coil Resistance (Ω) 0.75 ± 15％ [20°C (68°F)] Secondary Coil Resistance ...
