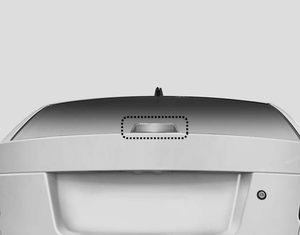

Hyundai Elantra HD: High mounted stop light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: High mounted stop light bulb replacement

1. Open the trunk lid.

1. Open the trunk lid.

2. Remove the socket by turning it counterclockwise.

3. Replace the bulb from the socket.

4. Install the socket by turning it clockwise.

Rear combination light bulb replacement
(1) Back-up light (2) Rear turn signal light (3) Stop and tail light (4) Side mark light 1. Open the trunk lid 2. Remove the service cover by pulling out the service cover. 3. Remove the s ...

License plate light bulb replacement
1. Loosen the lens retaining screws with a cross-tip screwdriver. 2. Remove the lens. 3. Remove the bulb by pulling it straight out. 4. Install a new bulb. 5. Reinstall the lens securely with the ...
