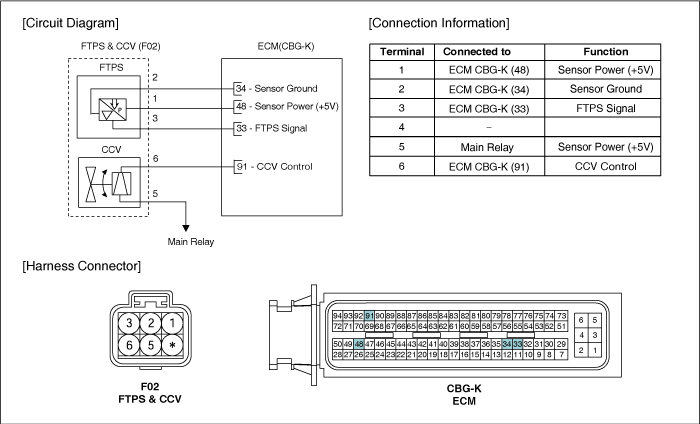

Schematic Diagram

Fuel Tank Pressure Sensor (FTPS). Specifications

Specification Pressure (kPa) Output Voltage (V) -6.67 0.5 0 2.5 +6.67 4.5 ...

Fuel Tank Pressure Sensor (FTPS). Repair procedures

Component Inspection 1. Connect a scantool on Diagnosis Link Connector (DLC). 2. Check FTPS output voltage at idle. ...
