Hyundai Elantra HD: Front Door. Repair procedures - Exterior - Body (Interior and Exterior) - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra HD: Front Door. Repair procedures

Replacements

Door Trim Replacement
-
Take care not to scratch the door trim and other parts.
-
Put on gloves to protect your hands.
1.
Remove the quadrant inner cover (A).

2.
Loosen the door trim (E) mounting screws. Release the clips that hold the door trim, then remove the door trim by pulling it upward. Disconnect the power window switch connector, power mirror connector, and door courtesy lamp connector, trunk lid connector.

3.
Installation is the reverse of removal.
-
Make sure of connectors is plugged in properly and each rod is connected securely.
-
Make sure the door lock and opens properly.
Glass Replacement
1.
Remove the door trim.
2.
Remove the glass mounting hole plug (A).
-
Using the door switch to align the mounting hole with the hole on the door glass.
-
If it is impossible, align the hole with hands after removing the motor.
-
Take care not to drop to glass and scratch the glass surface.
3.
Carefully move the glass (B) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.

4.
Installation is the reverse of removal.
-
Roll the glass up down to see if it move freely without binding.
-
Adjust the position of the glass as necessary.
Speaker Replacement
1.
Remove the door trim.
2.
Drill out the rivets to remove the speaker (B) from the door module.
3.
Disconnect the speaker connector (A).

4.
Installation is the reverse of removal.
Use sheet metal screws to secure the speaker.
Power Window Motor Replacement
1.
Remove the door trim.
2.
After disconnecting the connector (A), remove the power window motor (B).

3.
Installation is the reverse of removal.
-
Roll the glass up down to see if it move freely without binding.
Door Module Assembly Replacement
1.
Remove the following parts.
A.
Door trim.
B.
Glass.
C.
Outside handle.
2.
Loosen the mounting bolt (A).

3.
Loosen the door module mounting bolts, then remove the door module (A).

4.

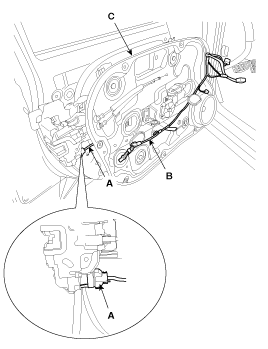

Disconnect the connector (A).
5.
Disconnect the door module wiring harness (B), then remove the module assembly (C).

6.
Installation is the reverse of removal.
-
Make sure the connector is plugged in properly and each rod is connected securely.
-
Make sure the door lock and open properly.
Latch Assembly Replacement
1.
Remove the following parts.
A.
Door trim.
B.
Glass.
C.
Out side handle.
2.
Remove the module assembly.
3.
Disconnect the latch connector (A), then remove the latch assembly (B).

4.
Installation is the reverse the removal.
-
Make sure the door locks and opens properly.
Out Side Handle Replacement
1.
After loosening the mounting bolt, then remove the key holder (A).

2.
Remove the outside handle (A) by sliding it rearward.

3.
Remove the outside handle pad (A).

4.
Installation is the reverse of removal.
Door Belt Weatherstrip Replacement
1.
Loosen the mounting screw, then remove the door belt weatherstrip (A).

2.
Installation is the reverse of removal.
Door Checker Replacement
1.
Remove the following parts.
A.
Door trim
B.
Window glass
C.
Door module
2.
After loosening the mounting bolts, then remove the door checker (A).

3.
Installation is the reverse of removal.
Door Weatherstrip Replacement
1.
Loosen the checker mounting bolts.
2.
Detach the clips, then remove the weatherstrip(A).

3.
Installation is the reverse of removal.
Door Panel Replacement
1.
Remove the following parts.
A.
Outside mirror view.
B.
Window glass.
C.
Door trim.
D.
Door module.
E.
Door checker.
2.
After loosening the mounting bolts, then remove the door panel (A).

3.
Installation is the reverse of removal.

Adjustment

Glass Adjustment
-
Check the glass run channel for damage or deterioration, and replace them necessary.
1.
Remove the following parts.
A.
Quadrant inner cover.
B.
Door trim.
2.
Carefully move the glass (A) until you can refer to the glass mounting bolts (B), then loosen them.

3.
Check that the glass moves smoothly.
4.
Raise the glass fully, and check for gaps.
Check that the glass contacts the glass run channel evenly.
5.
Check for water leaks. Run water over the roof and on the sealing area as shown, and note these items:
A.
Use a 12mm (1/2Iin.) diameter hose (A).
B.
Adjust the rate of water flow as shown (B).
C.
Do not use a nozzle.
D.
Hold the hose about 300mm(12in.) away from the door (C).

Door Position Adjustment
-
After installing the door, check for a flush fit with the Body, then check for equal gaps between the front, rear, and bottom, door edges and the body. Check that the door and body edges are parallel. Before Adjusting, replace the mounting bolts.
1.
Place the vehicle on a firm, level surface when adjusting the doors.
2.

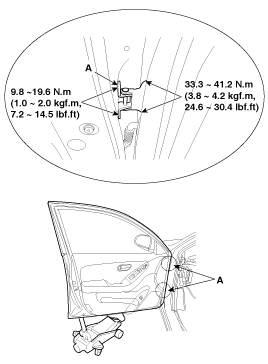

Adjust at the hinges (A):
A.
Loosen the door mounting bolts (B) slightly, and move the door IN or OUT until it aligns flush with the body.
B.
Loosen the hinge mounting bolts (C) slightly, and move the door BACKWARD or FORWARD, UP or DOWN as necessary to equalize the gaps.
C.
Place a shop towel (D) on the jack (E) to prevent damage to the door when adjusting the door.

3.
Check that the door and body edges are parallel.

4.
Grease the pivot portions of the hinges indicated by the arrows.

5.
Check for water leaks.
Door Striker Adjustment
Make sure the door latches securely without slamming it.
If necessary adjust the striker (A): The striker nuts are fixed.
The striker can be fine adjusted up or down, and in or out.
1.
Loosen the screws (B), then insert a shop towel between the body and striker.

2.
Lightly tighten the screws.
3.
Wrap the striker with a shop towel, then adjust the striker by tapping it with a plastic hammer.
Do not tap the striker too hard.
4.
Loosen the screws and remove the shop towel.
5.
Lightly tighten the screws.
6.
Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If the door latches properly, tighten the screws and recheck.
