Hyundai Elantra: Front Disc Brake. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra: Front Disc Brake. Components and Components Location

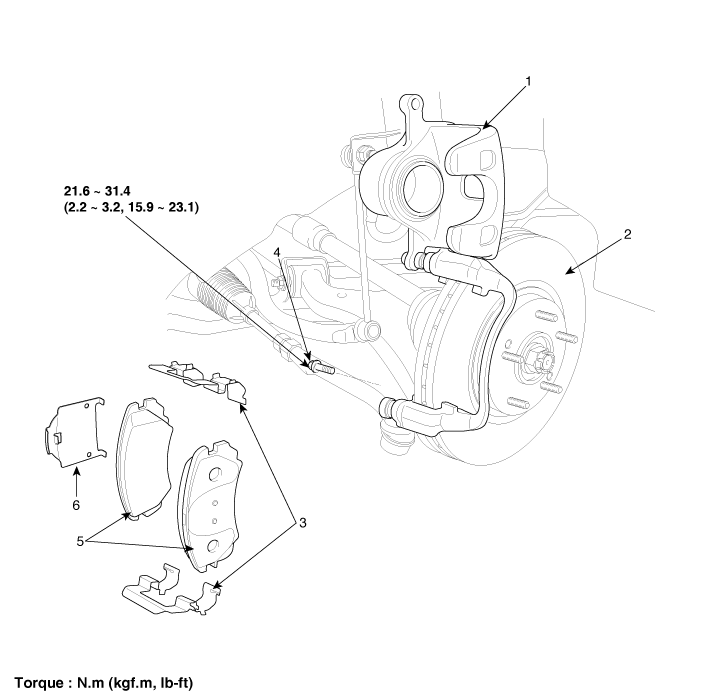

Components(1)

1. Brake caliper
2. Brake disc
3. Pad spring
 4. Guide rod bolt
5. Brake pad
6. Brake pad shim

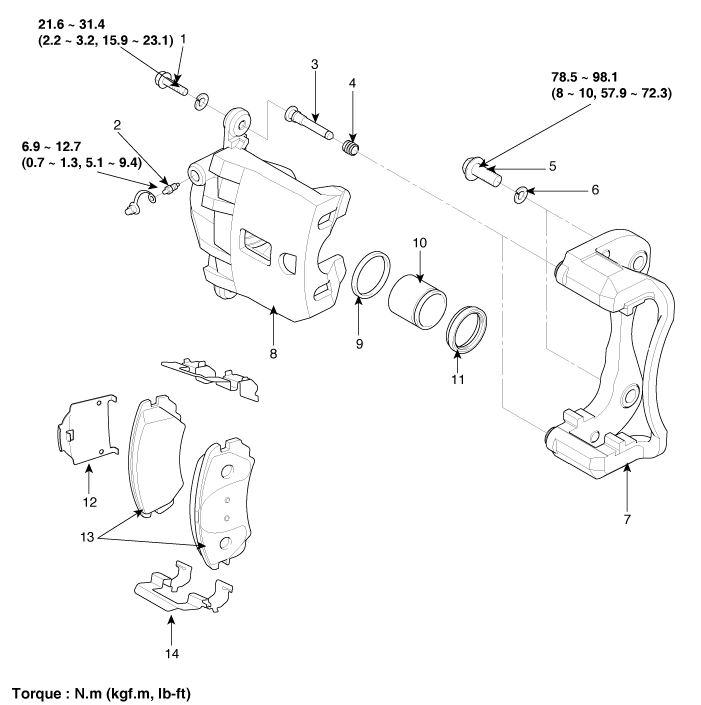

Components(2)

1. Guide rod bolt
2. Bleeder screw
3. Guide rod
4. Boot
5. Caliper mounting bolt
 6. Washer
7. Caliper carrier
8. Caliper housing
9. Piston seal
10. Piston
 11. Piston boot
12. Shim
13. Brake pad
14. Pad spring
