Hyundai Elantra: Exhaust Manifold. Components and Components Location - Intake And Exhaust System - Engine Mechanical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra: Exhaust Manifold. Components and Components Location

Components

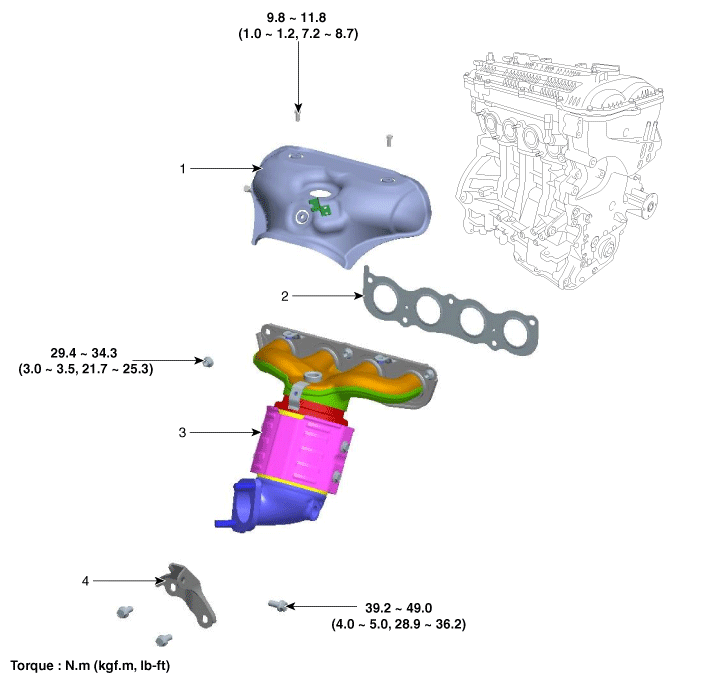

[ULEV]

1. Heat protector
2. Exhaust manifold gasket
 3. Exhaust manifold
4. Exhaust manifold stay

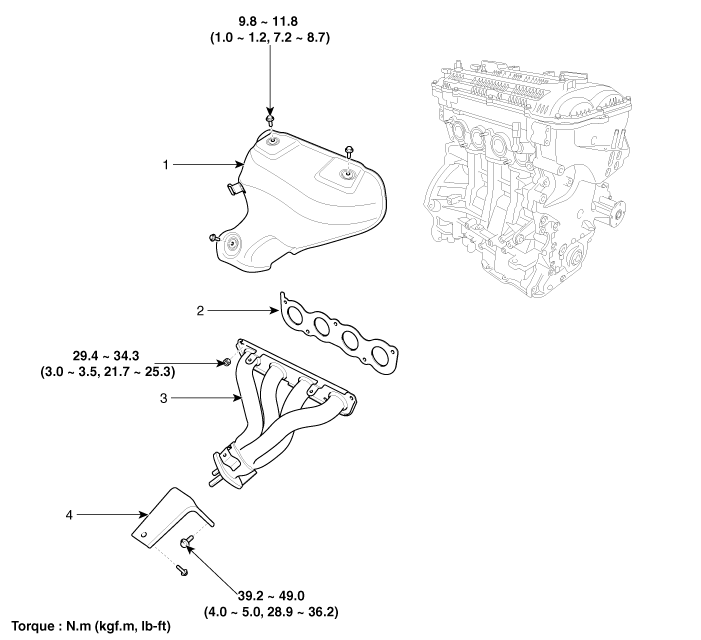

[SLUEV]

1. Heat protector
2. Exhaust manifold gasket
 3. Exhaust manifold
4. Exhaust manifold stay
