Hyundai Elantra HD: Engine temperature gauge - Gauges - Instrument cluster - Features of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Engine temperature gauge

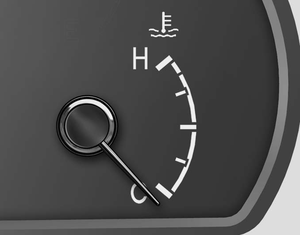

This gauge shows the temperature of the engine coolant when the ignition switch

This gauge shows the temperature of the engine coolant when the ignition switch is ON.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the engine overheats” in the Index.

CAUTION CAUTION

If the gauge pointer moves beyond the normal range area toward the “H” position, it indicates overheating that may damage the engine.

WARNING WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could erupt and cause severe burns.Wait until the engine is cool before adding coolant to the reservoir.
