Burglar Alarm System
The burglar alarm system is armed automatically after the doors, hood, and trunk lid are closed and locked.
The system is set off when any of these things occur:
A door is forced open.
A door is unlocked without using the transmitter & key.
The trunk lid is opened without using the key.
The hood is opened.
The engine starter circuit and battery circuit are bypassed by breaking the ignition switch.
When the system is set off, the alarm (horn) sounds and the hazard lamp flash for about two minutes or until the system is disarmed by unlocking the transmitter.
For the system to arm, the ignition switch must be off and the key removed. Then, the body control module must receive signals that the doors, hood, and trunk lid are closed and locked. When everything is closed and locked, none of the control unit inputs are grounded.
The door switches, hood switch and trunk lid switch are all close and lock the doors with the remote transmitter and then the system arms after 30 second.
If anything is opened or improperly unlocked after the system is armed, the body control module gets a ground signal from that switch, and the system is set off.
If one of the switches is misadjusted or there is a short in the system, the system will not arm. As long as the body control module continues to get a ground signal, it thinks the vehicle is not closed and locked and will not arm.
The receiver is integrated in the body control module.
Keyless Entry System
The burglar alarm system is integrated with the keyless entry system. The keyless entry system allows you to lock and unlock the vehicle with the remote transmitter. When you push the lock button, all doors lock. When you push the unlock button all doors unlock.
The room lamp, if its switch is in the center position, will come on when you press the unlock button. If you do not open a door, the light will go off in about 30 seconds, the doors will automatically relock, and the burglar alarm system will rearm. If you relock the doors with the remote transmitter within 30 seconds, the light will go off immediately.
You cannot lock or unlock the doors with the remote transmitter if the key is in the ignition switch.
The system will signal you when the doors lock and unlock by flashing the hazard lamp once when they lock, and twice when they unlock.

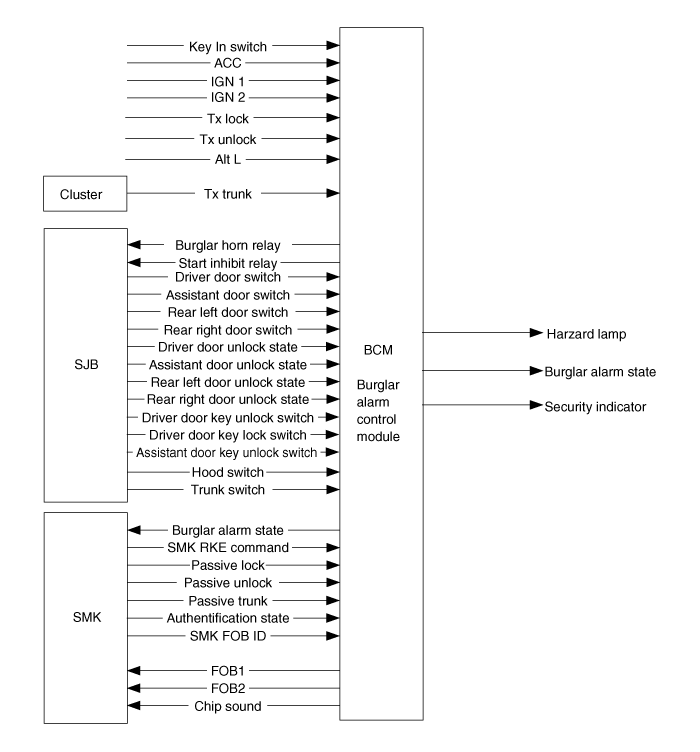

Data Flow

Overview Description
1.
According to various input signals there are a variety of changing conditions that perform many functions.
A.
ARM
B.
ARM WAIT
C.
AUTO lock TIMER1
D.
AUTO lock TIMER2
E.
ARM HOLD
F.
REARM
G.
ALARM
H.
PREARM
I.
DISARM
Condition 1 : At least one entrance opened
(4Door Not Close=ON) or (Trunk Open Switch=ON) or (Hood Switch=ON)
Condition 2 : All doors closed, but HOOD or TRUNK open
(4Door Not Close=OFF) & (Trunk Open Switch=ON) or (Hood Switch=ON)
Condition 3 : Close the 4DOOR with DOOR lock
(4Doors Locked) & (4Door Not Close ON→OFF)
Condition 2 & 3 : Close the 4DOOR with lock with HOOD or TRUNK OPEN
(4Doors Locked) & (4Door Not Close ON→OFF) & (Trunk Open Switch=ON) or (Hood Switch=ON)
All entrances closed : 4DOOR Switch & HOOD Switch & TRUNK OPEN Switch is CLOSE
LOCK : Lock command by Tx
UNLOCK : Unlock command by Tx
LOCK : Driver key lock switch is ON
UNLOCK : Driver key unlock switch is ON
TRUNK : TRUNK OPEN signal or TRUNK or RKE TRUNK command by Tx
IGN KEY ON : KEY IN Switch = ON & IGN1 = ON & IGN2 =ON
IGN KEY OUT : KEY IN Switch = OFF & IGN1 = OFF & IGN2 =OFF
KEY IN : KEY IN Switch = ON
KEY IN 1 : KEY IN Switch = ON or IGN1 = ON or IGN2 = ON
H1 : Hazard Time is one-time(lock) 1sec on
H2 : Hazard Time is two-time(unlock) 0.5sec/on, 0.5sec/off
AUTO LOCK TIMER1 : 30sec
AUTO LOCK TIMER2 : 30sec
ARM WAIT TIMER : 30sec
TRUNK TIMER : 30sec
TRUNK MARK : Default value is clear
LOCK CONFIRM CHECK : 0.2 ~ 5sec
Security Ind Control
1.
Key In switch ON or ACC ON1 ON or IGN1 ON or IGN2 ON or FOB IN is LED OFF.
2.
IGN KEY OUT entry in the ARM WAIT mode, the Infinite On control of the ARM WAIT mode, the other will control the BLINKING.
3.
BLINKING cycle is 2.3s.(ON during 0.3s / OFF during 2.0s)

T1 : 0.3sec, T2 : 2sec

Functions
DISARM Condition 1 State Description Initial Condition ALARM Event - IGN KEY O ...
