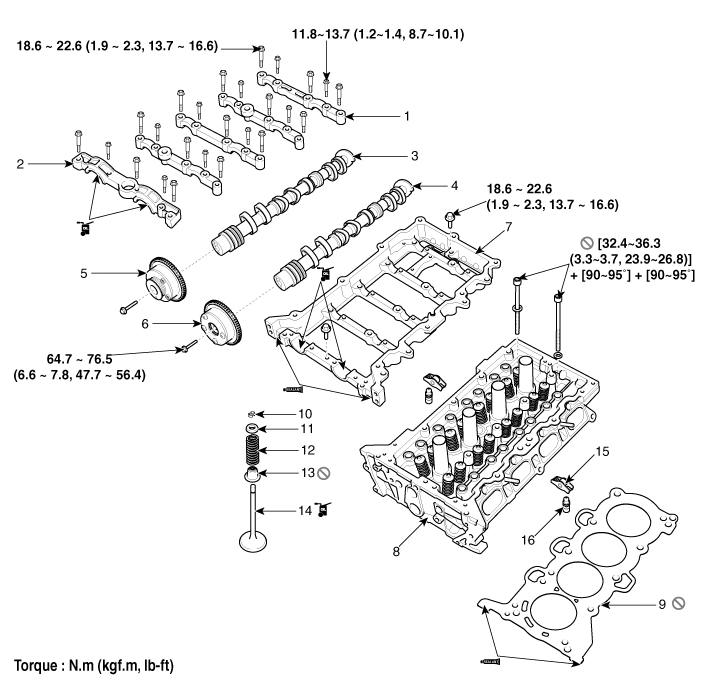

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
 7. Cam carrier
8. Cylinder head
9. Cylinder head gasket
10. Retainer lock
11. Retainer
12. Valve spring
 13. Valve stem seal
14. Valve
15. Swing arm
16. HLA (Hydraulic lash adjuster)


Installation
1. Compress the piston of the tensioner using a handy bar (A) and then insert a stopper pin (B) into the hole on the tensioner to hold the compressed piston. ...
