Hyundai Elantra: Crankshaft Position Sensor (CKPS). Schematic Diagrams

Fifth generation (MD/UD; 2010–2015) / Hyundai Elantra MD 2010-2015 Service manual / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS). Schematic Diagrams

Circuit Diagram

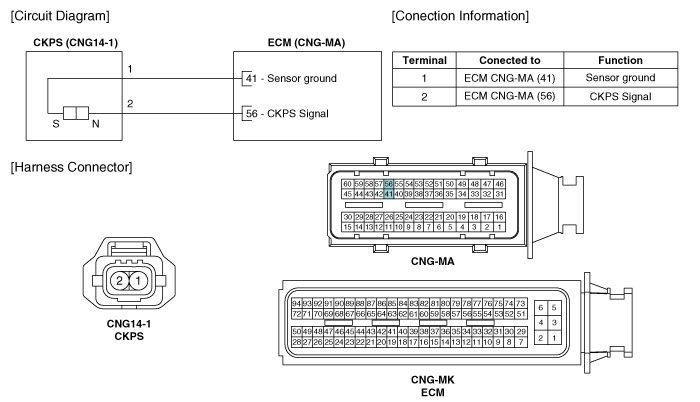

(M/T)

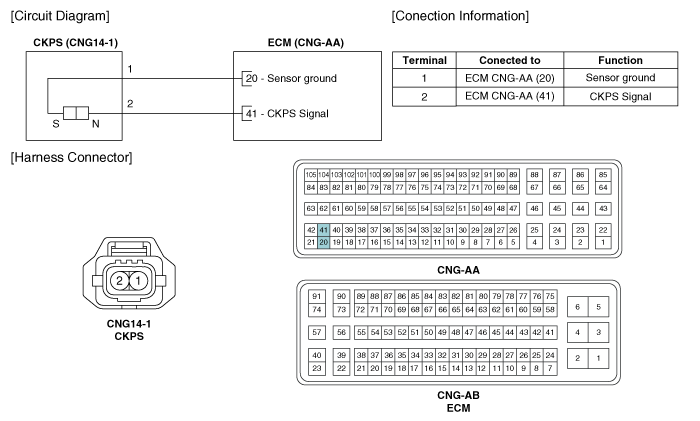

(A/T)
