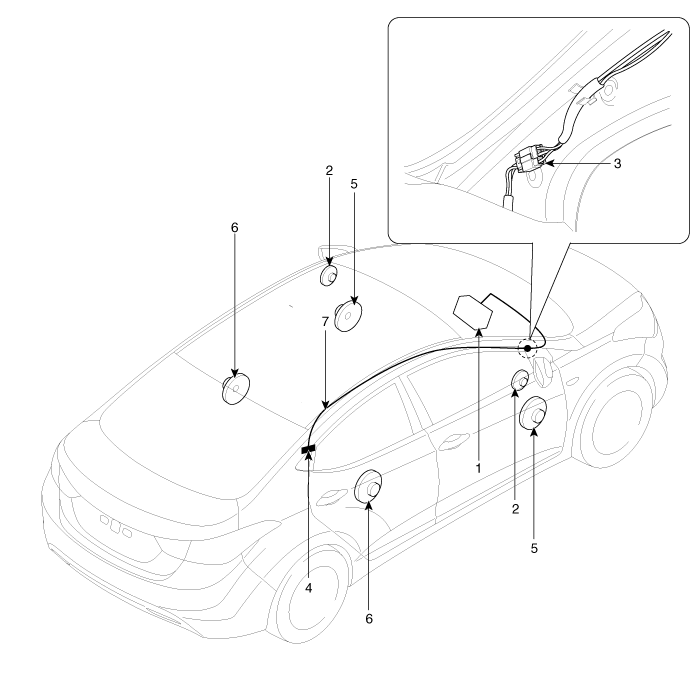

Component Location

1. Audio unit
2. Tweeter speaker
3. Antenna cable connector
4. Glass antenna amplifier (Radio)
 5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable


Specifications
Specification Audio Unit Item Specification Model RADIO/CDP/MP3/SDARS(PA710S), RADIO/CDP/MP3(PA710) Power supply DC 1 ...

Audio Unit. Components and Components Location
Components No Terminal Description Condition Specified Condition A1 Loudspeaker Rear Left+ Needed connection ...
