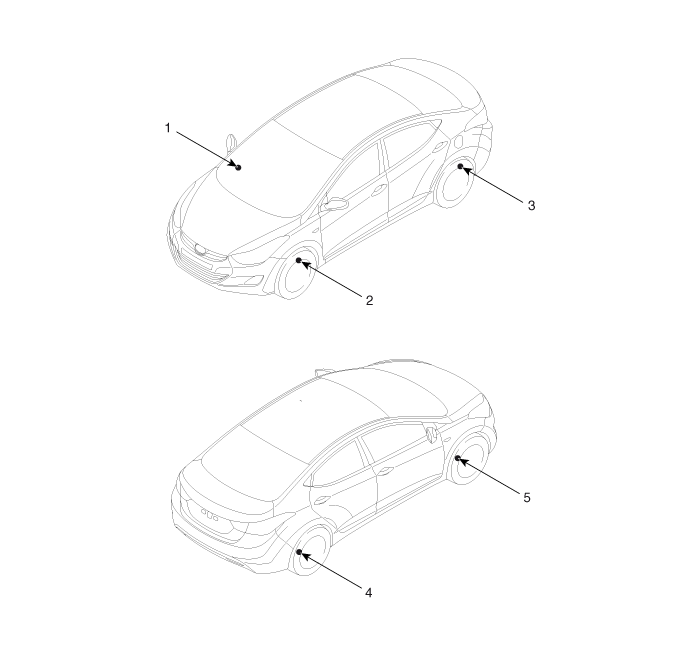

Components

1. Receiver
2. TPMS Sensor
3. TPMS Sensor

4. TPMS Sensor
5. TPMS Sensor

Tire Pressure Monitoring System

...

Schematic Diagrams

Circuit Diagram Hamess Connector Pin No. Discription Remark 1 - 2 - ...
