Hyundai Elantra MD/UD: Components - Front Driveshaft. Components and Components Location - Driveshaft Assembly - Driveshaft and axle - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Components

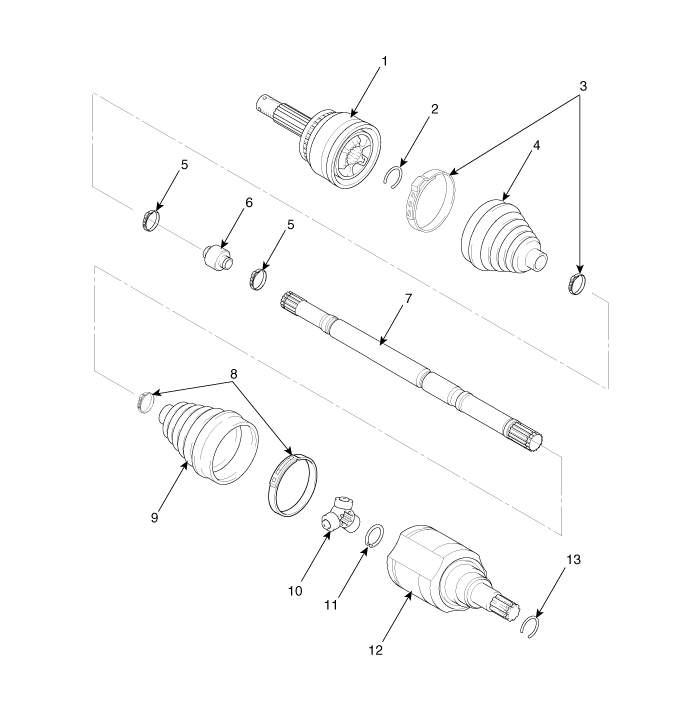

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
 10. Spider assembly
11. Snap ring
12. TJ case
13. Snap ring


Component location
1. Driveshaft (LH) 2. Circlip 3. Circlip 4. Driveshaft (RH) ...
