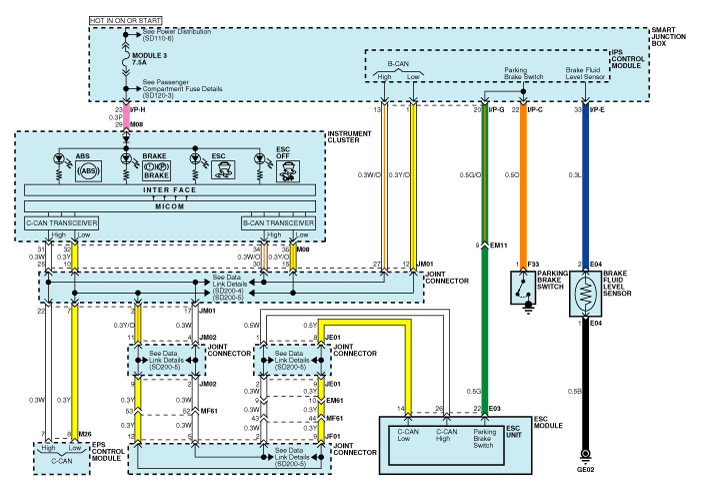

Hyundai Elantra MD/UD: Circuit Diagram - ESC (1)

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Brake System / ESC(Electronic Stability Control) System / Schematic Diagrams / Circuit Diagram - ESC (1)
