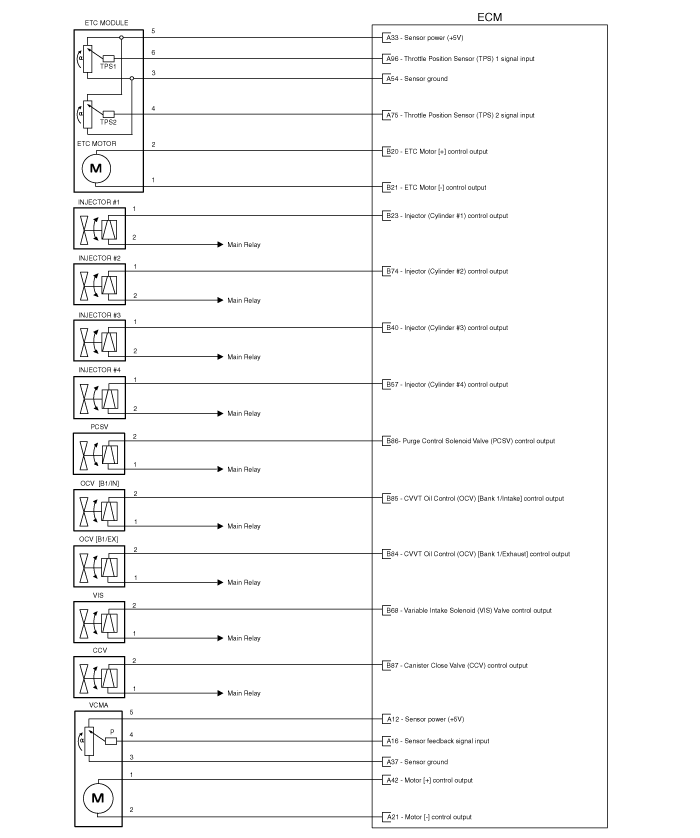

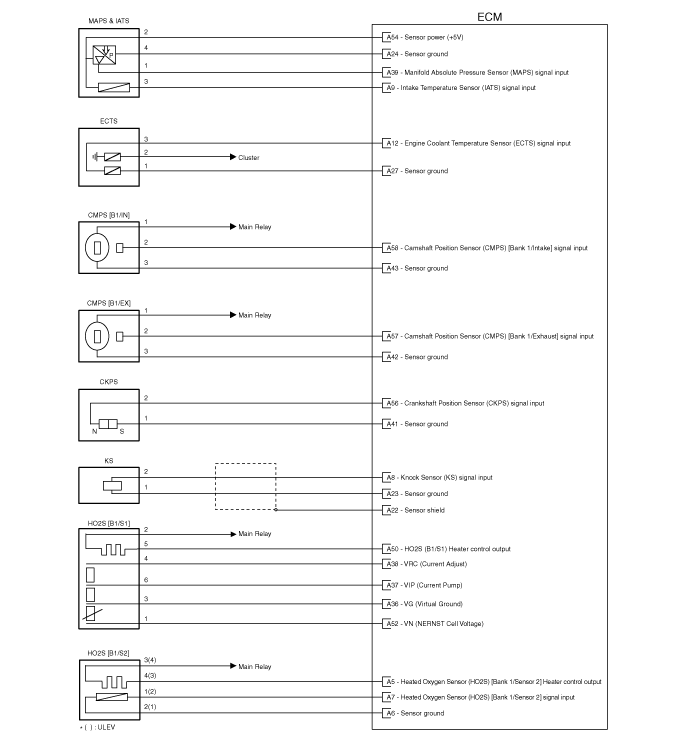

Hyundai Elantra MD/UD: Circuit Diagram - Engine Control Module (ECM). Schematic Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Circuit Diagram

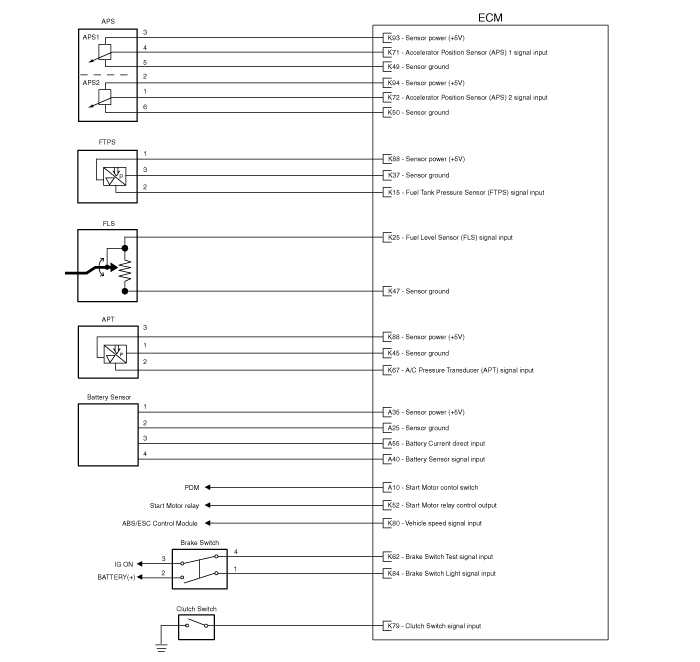

(M/T)

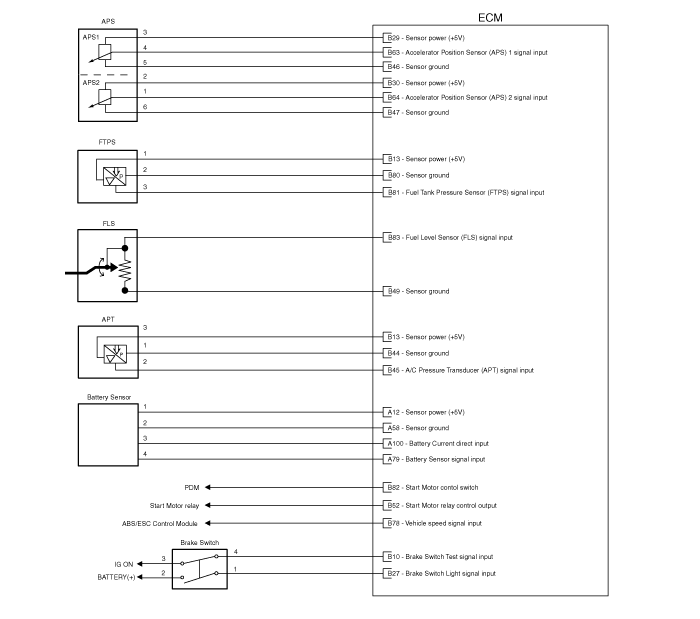

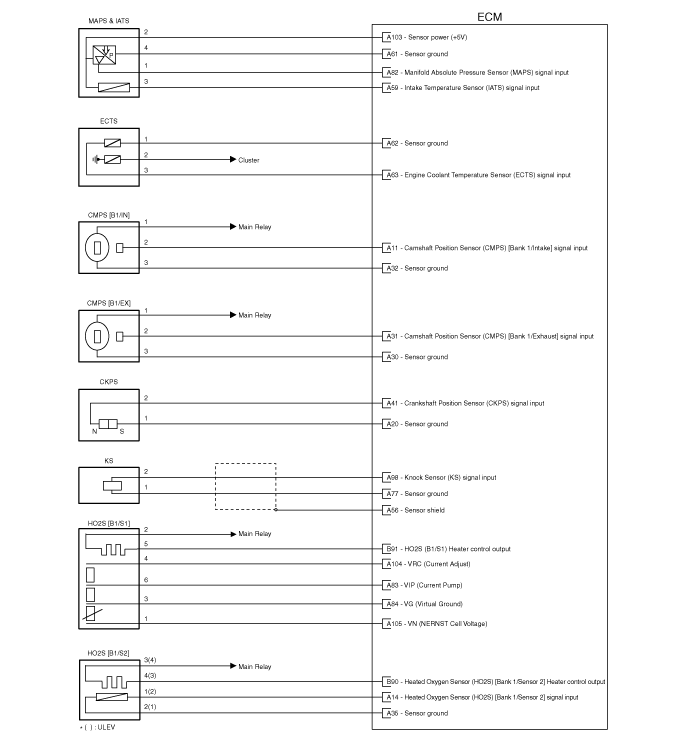

(A/T)


ECM Terminal And Input/Output signal (A/T)
ECM Terminal Function Connector [CNG-AA] Pin No. Description Connected to 1 Ignition Coil (Cylinder #2) control output ...
