Hyundai Elantra HD: Checking the engine oil level - Engine oil - Maintenance - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Checking the engine oil level

1. Be sure the vehicle is on level ground.

1. Be sure the vehicle is on level ground.

2. Start the engine and allow it to reach normal operating temperature.

3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

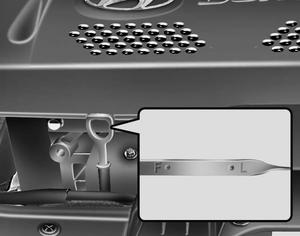

4. Pull the dipstick out, wipe it clean, and re-insert it fully.

5. Pull the dipstick out again and check the level. The level should be between F and L.

WARNING - Radiator hose WARNING - Radiator hose

Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

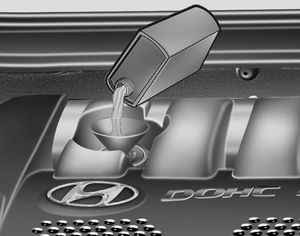

Use a funnel to refill the new oil comfortably.

Use only the specified engine oil. (Refer to the section 9.)

Changing the engine oil and filter
Have engine oil and filter changed by an authorized Hyundai dealer according to the Maintenance Schedule at the beginning of this section. PROPOSITION 65 WARNING Engine oil contains chemicals kn ...
