Hyundai Elantra MD/UD: Canister Close Valve (CCV). Schematic
Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Canister Close Valve (CCV). Schematic Diagrams

Circuit Diagram

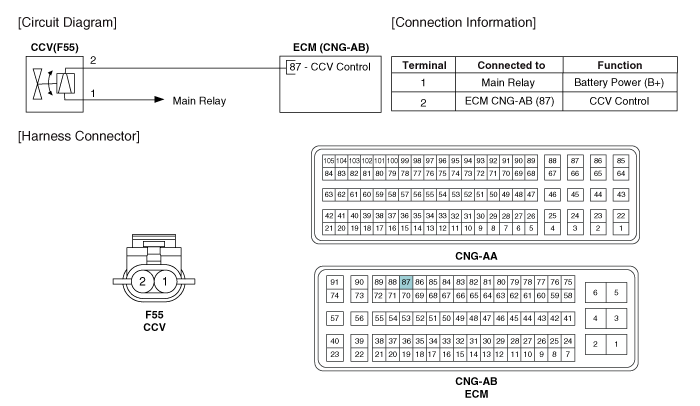

(M/T)

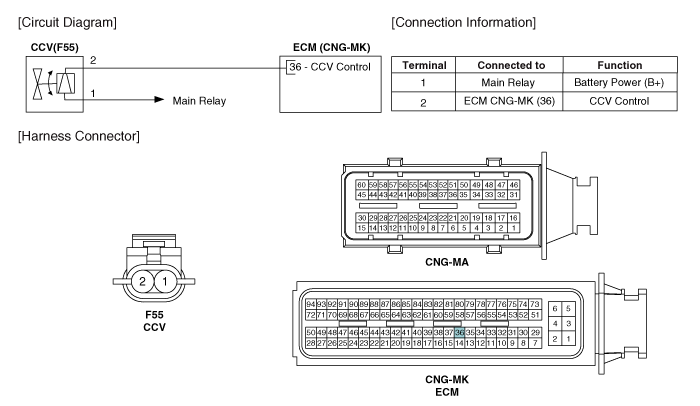

(A/T)
