Hyundai Elantra: Audio Unit. Components and Components Location
Fourth generation (HD; 2006–2010)
/
Hyundai Elantra HD 2006–2010 Service Manual
/
Body Electrical System
/
Audio
/ Audio Unit. Components and Components Location
Components

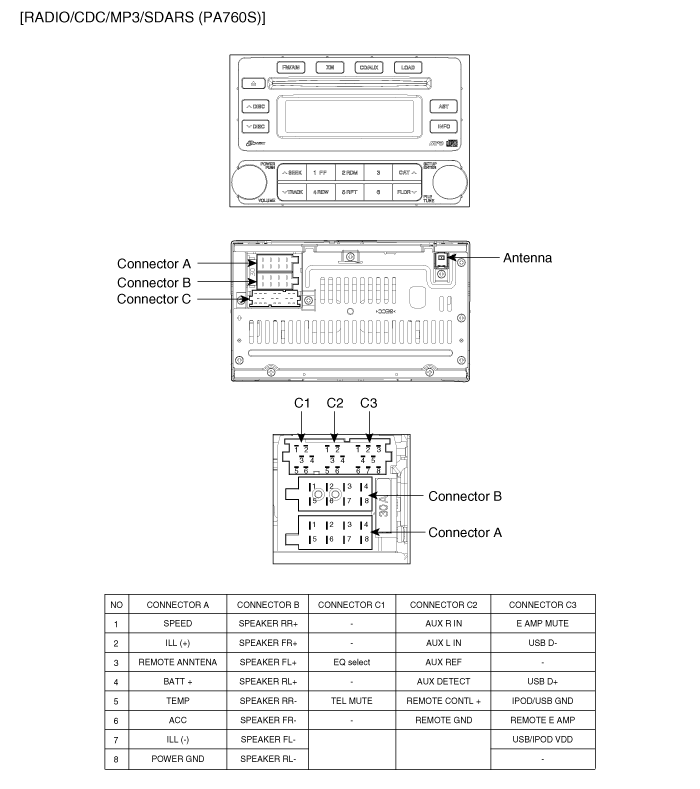

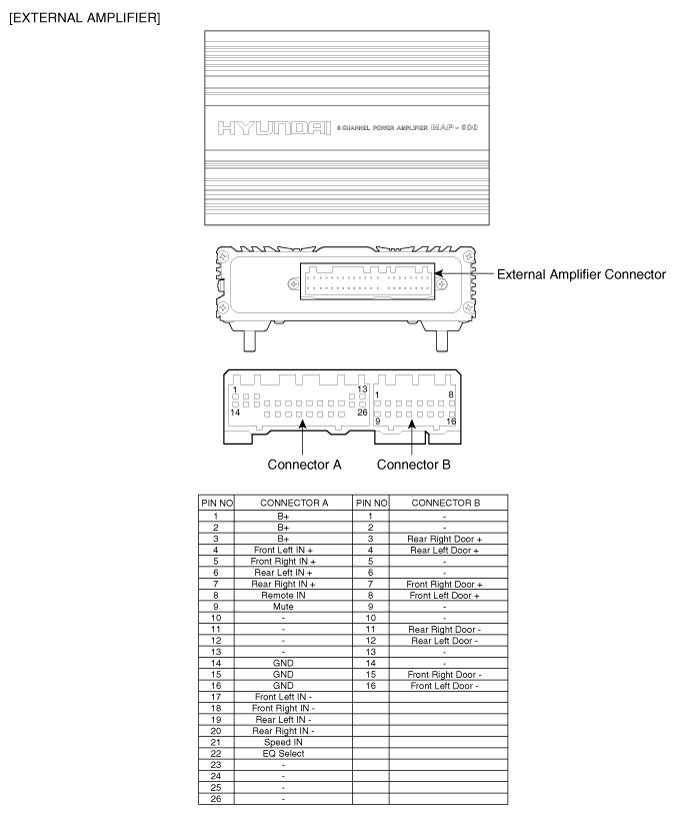

Components and Components Location
Component Location 1. Audio unit 2. Tweeter speaker 3. External amplifier 4. SDARS roof antenna 5. Front door speaker 6. Rear door speaker 7. Antenna feed ...
Audio Unit. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad center facia panel (A). (Refer to the Body group - Cra ...
