Hyundai Elantra: Alternator. Components and Components Location - Charging System - Engine Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra: Alternator. Components and Components Location

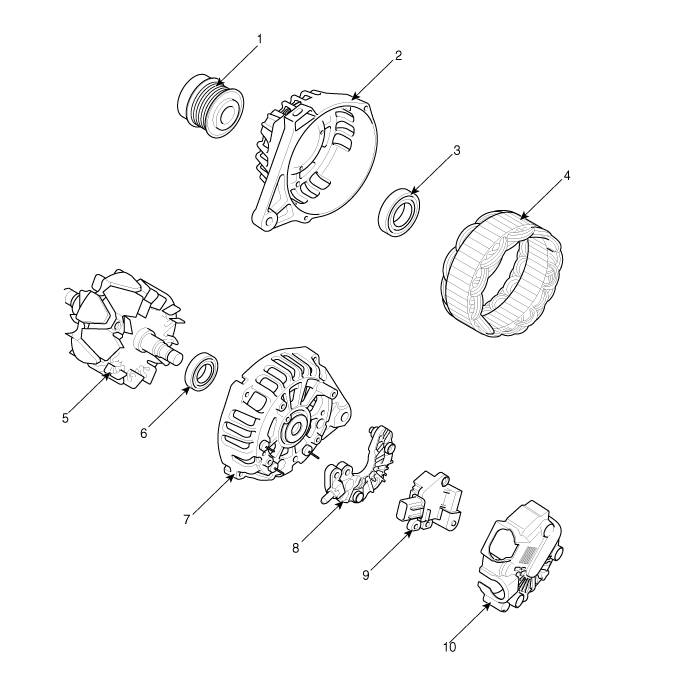

Components

1. OAD (Overrunning Alternator Decoupler) pulley
2. Front housing
3. Front bearing
4. Stator
5. Rotor
 6. Rear bearing
7. Rear housing
8. Rectifier assembly
9. Regulator assembly
10. Rear cover


    Alternator. Specifications
    Specification Alternator [Non-ISG type] Item Specification Rated voltage 13.5V, 90A Speed in use 1,000 ~ 18,000 r ...

    Alternator. Schematic Diagrams
    Circuit Diagram ...
