Hyundai Elantra: Headlight, position light, turn signal light, side marker light and front fog
light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra MD 2010-2018 Owners manualHyundai Elantra: Headlight, position light, turn signal light, side marker light and front fog light bulb replacement


(1) Headlight (High)

(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light / Position light
(4) Side marker
(5) Front fog light (if equipped)

- Halogen bulbsWARNING - Halogen bulbs

  • Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.

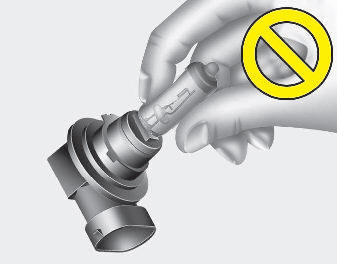

  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlight.
  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

1. Open the hood.

1. Open the hood.
2. Disconnect the negative battery cable.
3. Loosen the screws with a screwdriver.
4. Pull the headlight assembly out to the front of the vehicle.
5. Disconnect the power connector(s) from the back of the headlight assembly.
